Female Right Angle Flange Mount SMA RF Connector With Microstrip
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Frequency Range: | DC~30GHz | Impedance: | 50Ω |
|---|---|---|---|
| Durability: | 500 Cycles | Material: | Brass,Gold-plate |
| Application: | Audio/vedio/microwave | VSWR: | ≤1.3 |
| Insulation Resistance: | ≥2000MΩ | Insulating Medium: | PTFE |
| Highlight: | Audio SMA RF Connector,Flange Mount Female SMA Connector,DC 30GHz SMA RF Connector |
||

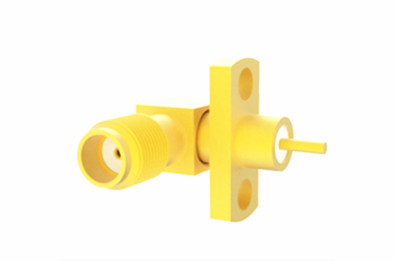

SSMA Female Right Angle Flange Mount with Microstrip RF Connector
The SSMA series of RF coaxial connectors are miniaturized versions of SMA connectors, characterized by their compact size, broad frequency bandwidth, and high reliability. They are extensively used in applications such as aviation and microwave communications.
Key Features:
Compact Size: As a smaller push-on type of RF coaxial connector, SSMP is particularly suitable for space-constrained applications.
Lightweight: Their lightweight design makes SSMP connectors useful in applications where reducing the overall weight of equipment is important.
Wide Frequency Range: SSMP connectors can operate over a wide frequency range, making them suitable for broadband applications.
Easy to Connect: They are designed for quick connection and are convenient for dense packing between RF modules.
Robust Construction: The inner conductor and shell are commonly made of beryllium bronze with gold plating, ensuring good electrical performance and corrosion resistance.
Strong Shock Resistance: SSMP connectors offer strong vibration resistance, making them suitable for use in environments subject to mechanical shock.
Specifiacation of SSMA Rf Connectors:
| Electronic and Material Characterials | ||
| Impedance | 50Ω | |
| Frequency Range | DC~30GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥2000MΩ | |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated | |
| Shell and other metal parts | Brass gold plated | |
| Stainless steel passivated | ||
| Cable sheath | Brass nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.5 -0.7N.m | |
Application:
Aerospace: The small size and wide bandwidth of SSMA connectors make them ideal for aerospace applications where there are strict requirements on equipment volume and weight, while maintaining high-performance communication links.
Wireless Communication: SSMA connectors are suitable for high-frequency ranges typically up to DC to 3GHz, playing an important role in wireless communication equipment, especially in applications that require miniature connectors.
Microwave Communication: They are also extensively used in microwave communication because they can support frequencies up to 20GHz, which is essential for microwave communication and measurement equipment.
Test Equipment: In test equipment, SSMA connectors ensure precise signal transmission, particularly in high-frequency testing environments where their performance can reach up to 34GHz, making them an ideal choice for high-performance test gear.
Broadcasting Equipment: SSMA connectors are employed in broadcasting equipment as they provide stable connections, ensuring high-quality transmission of broadcast signals.
Product Cataloge:
| RF Adapter |
| SMA RF Connector |
| SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |

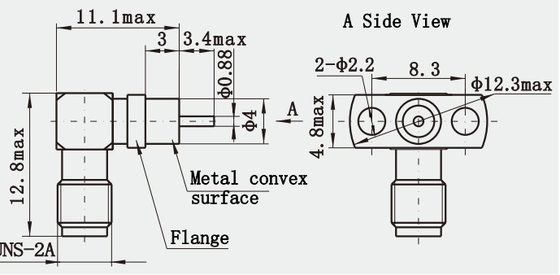

Interface Dimentions:
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
