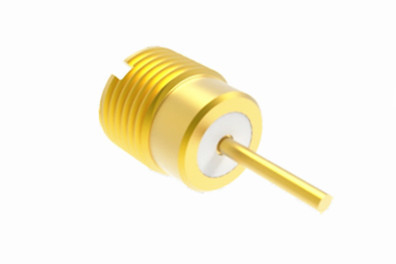

| Product Name: | ASMP | Gender: | Male |
|---|---|---|---|
| Type: | Bulkhead | Plating: | Gold Plated |
| Impedance: | 50Ω | Frequency Range: | DC~50GHz |
| Model: | ASMP-JYD1 | Body Style: | Straight |
| High Light: | ASMP RF Connector,Male Bulkhead Microstrip RF Connector,Straight RF Female Connector |
||
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
Size: ASMP connectors are larger than their SMP (SubMiniature version B) counterparts to accommodate higher power levels.
Power Handling Capacity: They can handle more power compared to SMP connectors, typically up to several hundred watts.
Applications: ASMP connectors are suitable for board-to-board connections and dense packaging situations, particularly where space is limited but high power handling is necessary.
Interface Styles: Male ASMP connectors may have fully latching mechanisms or smooth pin interfaces, while female connectors usually have one type of interface. This variety allows for different connection options to suit specific application requirements.
Construction Features: The ASMP series includes various straight and right-angle plugs and receptacles that can be connected to cables. They offer various mounting configurations, such as panel-mount and flange-mount, along with hermetically sealed versions using glass seals.
Mechanical Reliability: Fully latching ASMP connectors provide excellent mechanical reliability, making them suitable for use in vibration-prone environments typical of aerospace and other high-performance systems.
Material & Mechanical Characteristics:
Center Conductor:
Male: Sn-P Bronze/Kovar, Gold plated
Female: Beryllium bronze, Gold plated
Elastic Contact:Beryllium bronze Gold plated
Body and other Metal Parts: Brass/Kovar Gold plated

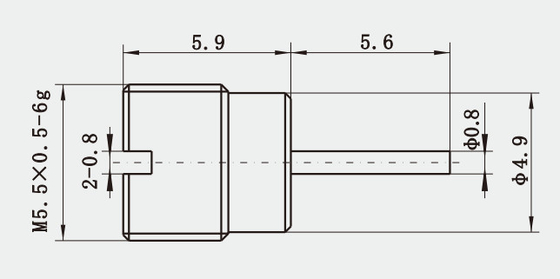

Product Drawing:
