| Item: | SSMA RF Conector | Plating: | Gold-plateed |
|---|---|---|---|
| Gender: | Female | Impedance: | 50Ω |
| Frequency: | DC~30GHz | Lifetime: | 500 Cycles |
| Body: | Brass | Application: | Audio/Vedio/Microwave |
| High Light: | SMA RF Coaxial Cable Connector,Male Right Angle SMA RF Connector,Video SMA RF Connector |
||

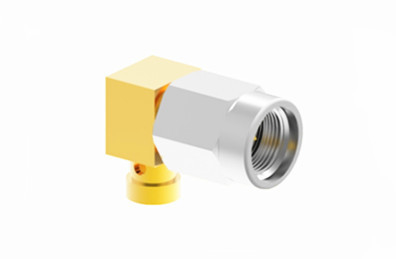

The SSMA series RF coaxial connectors are miniaturized versions of SMA connectors, featuring small size, wide frequency bandwidth, and high reliability. They are widely used in various industries such as aviation, microwave communications and more.
Key Features:

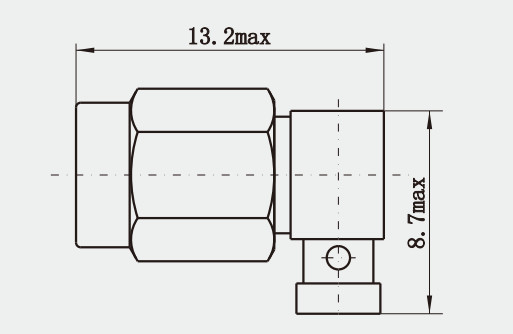

Outline Drawing:
Specifiacation of SSMA Rf Connectors:
| Electronic and Material Characterials | ||
| Impedance | 50Ω | |
| Frequency Range | DC~30GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated | |
| Shell and other metal parts | Brass gold plated | |
| Stainless steel passivated | ||
| Cable sheath | Brass nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |
Application:
SSMA connectors are widely used in various industries due to their high-performance characteristics. Its characteristic impedance is standard 50Ohms, and the frequency range can be as high as DC to 26.5GHz, making it very suitable for high-frequency applications. In addition, its flexible cable installation method is suitable for both free hanging cable installation and panel installation. The working temperature range is wide, from -65℃ to 125℃ or -65℃ to 165℃, making it stable to work in various environments. Overall, SSMA connectors have become an ideal choice for various industries due to their excellent performance and wide application range.
Related Product
1.
| Model Number | L | L1 | L2 | D | D1 | Description |
| SMA-KHD | 13.5 | 4 | 4 | 1.3 | 1.4 | 4 legs SMA female rf connector solder for PCB |
| SMA-KHD109 | 12 | 2.5 | 2.5 | 1.3 | 1.4 | |
| SMA-KHD112 | 12 | 2.5 | 1.6 | 1.3 | 1.4 | |
| SMA-KHD117 | 13.5 | 4 | 4 | 0.9 | 1 | |
| SMA-KHD150 | 14.5 | 5 | 5 | 1.3 | 1.4 | |
| SMA-KHD158 | 15.5 | 6 | 6 | 0.9 | 1 |
2.
| Model Number | Cable Type | Description |
| SSMA-JWB2A | 2#semi-flexible/2#semi rigid | Male right angle SSMA RF Connector for Cable |
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
