Stainless Steel SMA Male Right Angle RF Connector For SFF-50-1.5-1 Cable
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item: | SMA RF Conector | Plating: | Passivated |
|---|---|---|---|
| Gender: | Male | Impedance: | 50Ω |
| Frequency: | DC~18GHz | Lifetime: | 500 Cycles |
| Body: | Stainless Steel | Application: | Audio/vedio/microwave |
| Highlight: | Stainless Steel SMA RF Connector,SMA RF Cable Connector |
||

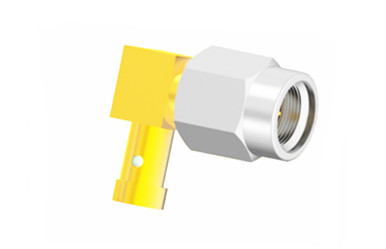

SSMA Male Right Angle RF Connector for SFF-50-1.5-1 Cable
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector. It is known for its small size, wide frequency band, and high reliability. This connector is widely used in various industries such as aviation, aerospace, microwave communication, and more.
Key Features:
- Space saving alternative to standard SMA
- Threaded coupling mechanism offers reliability for rugged designs
- Ideal for high-frequency applications
Specifiacation of SSMA Rf Connectors:
| Electronic and Material Characterials | ||
| Impedance | 50Ω | |
| Frequency Range | DC~30GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated | |
| Shell and other metal parts | Brass gold plated | |
| Stainless steel passivated | ||
| Cable sheath | Brass nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |

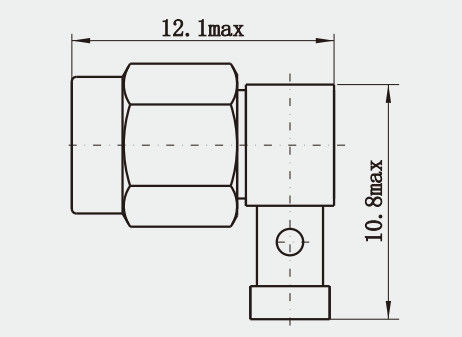

Detained outline drawing:
Product Cataloge:
| RF Adapter |
| SMA RF Connector |
| SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
Application:
The SSMA connector is a super-miniature RF coaxial connector with operating frequency range of DC-34 GHz, and some versions can even reach up to 35 GHz and expandable to 40 GHz. In addition, the standard SSMA connector has a characteristic impedance of 50 ohms. Due to its small size and stable characteristics, it is widely used in high-performance applications such as aerospace, defense, and wireless communications. At the same time, these connectors are also suitable for applications that require high-speed data transmission.
Interface Dimentions:
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
