Gold Plated SSMB Male PCB Mount RF Connector Straight Type Nickel / Gold Plated

Large Image : Gold Plated SSMB Male PCB Mount RF Connector Straight Type Nickel / Gold Plated Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	CE ROHS
Model Number:	SSMB-JHD

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks

Contact Now

Detailed Product Description

Product Name:	SSMA RF Conector	Plating:	Nickel/Gold Plated
Durability:	500 Cycles	Contact Material:	Brass, BeCu
Material:	Brass	Design Standard::	IEC 1169-33
Type:	Straight	Gender:	Male
High Light:	Straight RF Coaxial Adapter Connector , SSMB Male PCB Mount RF Connector , Gold Plated PCB Mount RF Connector

Elevate Your Electronics with Our Durable and Reliable Gold-Plated SSMB Male PCB Mount RF Connector

SSMB series products are miniature push-in and snap-in radio frequency coaxial connectors developed and manufactured in accordance with IEC60169-19. They have the characteristics of small size, light weight, easy to use, etc., and are used in micro radio equipment and instruments.

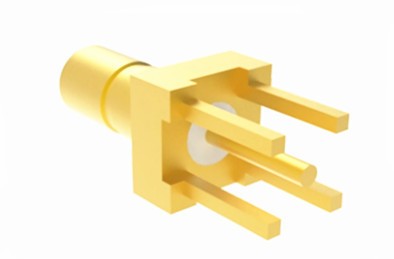

Gold Plated SSMB Male PCB Mount RF Connector Straight Type Nickel / Gold Plated 0

Specification

Electrical Characteristics
Impedance	50Ohm
Frequency Range	DC~3GHz
Rated Voltage	250 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance	170VRMS (Maximum sea-level)
Insulation Resistance	≥2000MOhm
Contact Resistance	Outer conductor	≤5.5mOhm
	Center conductor	≤2.5 mOhm
VSMR	≤1.35
Rated Voltage	500 VRMS

Product Detail

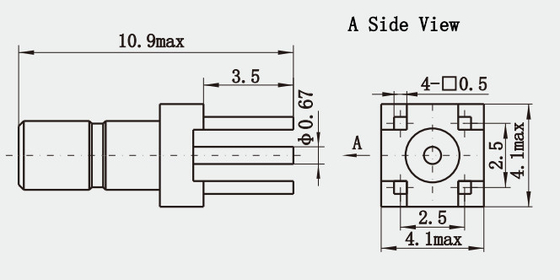

Gold Plated SSMB Male PCB Mount RF Connector Straight Type Nickel / Gold Plated 1

Material & Mechanical Characteristics
Center Conductor	Male/Plug	Brass	Gold plated
	Female/Socket	Beryllium bronze	Gold plated
Resilience Contact	Beryllium bronze		Gold plated
Shell / Housing	Brass		Gold plated
Insulators	PTFE
Sealing Ring	Silicone Rubber
Durability	500 cycles

RoHS Compliant	Yes
Mating Cycles	500Cycles
Contact Retention	10N min
Cable Retention	100N min
Mating Force	0.6N max
Un-Coupling Force	0.6 N max

Environmental Specification:

Operating Temperature	-65 to +165Deg C
IP Rating ( Mated )	IP64

Features:

Compact and lightweight: This makes it extremely versatile for installation and layout, especially in space-constrained environments.
Easy to use: The connector uses threaded connection (both socket and plug), providing reliable electrical and mechanical connections.
Excellent electrical performance: With an impedance of 50 Ohm and a wide operating frequency range, it is well suited for high-frequency transmission and applications with limited space, such as mobile communications, satellite communications, wireless local area networks (Wi-Fi), and radio test equipment.
High reliability: Due to its structural design, this connector offers high reliability.

Application:

It is widely used in connecting coaxial cables in radio equipment and electronic instruments in high-frequency circuits, such as GPS systems, digital PCN, wireless network cards, PC/LAN, and other devices using surface mount technology (SMT).

NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
