| Insertion Loss: | ≤2.3dB （0.3MHz~18GHz） | Impedance: | 50Ω |
|---|---|---|---|
| Certificate: | CE ROHS | Dielectric Withstand Voltage: | 300V |
| Dielectric Resistance: | ≥5000MΩ | Durability: | Mating Cycles ≥500 Times |
| VSWR: | ≤1.4 （0.3MHz~18GHz） |

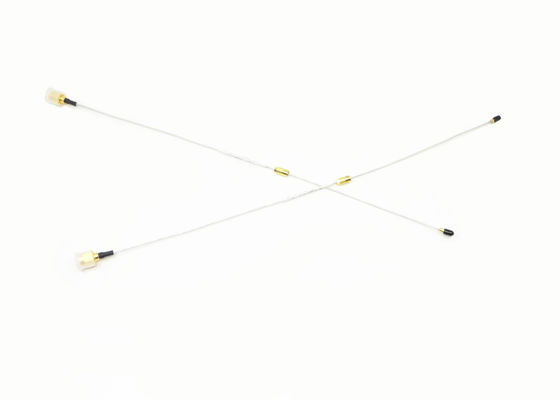

Custom SMA Male to SSMP Female Coax Cable Assemblies with Cable 1#Semi-rigid Coaxial Cable
The SMA RF coaxial connector is a small, high frequency coaxial connector developed in accordance with MIL-C-39012.
It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc.
It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment
and other fields. This series of high performance connectors developed by our company can reach frequencies up to 20 Ghz.
Specifiacation:
| Electrical Characteristics | ||
| Frequency Range | 0.3MHz~18GHz | |
| Characteristic Impedance | 50ohm | |
| VSWR | ≤1.4 | |
| Dielectric Withstanding Voltage | ≥300VRMS,50Hz, at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
|
Electrical Continuity |
The inner and outer conductors are respectively continuous |
|
|
The inner and outer conductors are respectively continuous |
||
| Material & Mechanical Characteristics | ||
| Durability | Mating cycles ≥500 times | |
Application:
* Computer/LANs
* Mobile communication
* Instrumentation
* Base Station
* Instrumentation
* Basic facility
* Radio, TV aerial system
* Phased array radar
* Microwave RF device
* Outdoor facilities
* Radar microwave
* Telecommunications
Detailed Drawing
Purchasing of ready-made microwave cable assembly lines provides important benefits:
• Perfect assembly, no rejects
• No need for training assembly personnel
• No capital investment for assembly provisions
• Precisely matched cables and connectors from
the same manufacturer
• Xi'an Elite Electronic guaranties quality
Assembly shop capability:
*Automatic stripping
*Automatic laser stripping
*Temperature controlled soldering
*Clean room
*Laser marking
Advantages:
√ Competitive price
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ Monthly average turnover is 10million
√ Custom-made (ODM) orders welcome here
√ We are committed to providing high-quality products to customers
√ Specializes in manufacturing RF connector more than 20 yearS
√ Have long and Rich cooperation experience with national project components supply
√ With our own factory with 35,000㎡
√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery
√ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.), more than 500
experienced workers with over 10 production line
Product Cataloge:
| RF Adapter |
| Microwave Rotary Joints |
| Waveguide To Coaxial Adapter |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| SMA/SSMA RF Connector |
| RF Cable Assemblies |
| BNC RF ConnectorMillimeter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| SMP/SSMP RF Connector |
NOTE:
We have over 10,000 types of cable Assembly, if the connector you are using is not found, please contact us with your details.
