| Product Name: | RF Cable Assembly | Plating: | Gold Plated/ Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | CE ROHS |
| Interface: | Snap-On, Threaded, Push | Model: | SMA |
| High Light: | Right Angle RF Cable Harness Assembly,SMA Male RF Cable Assembly,Nickel Plated RF Cable Assembly |
||

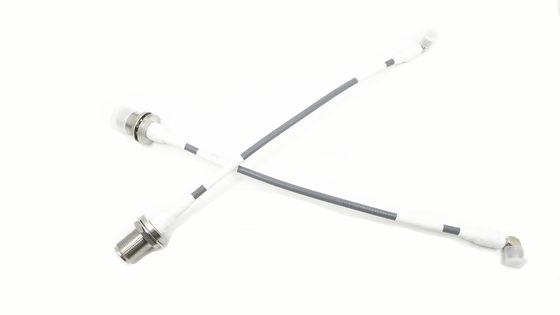

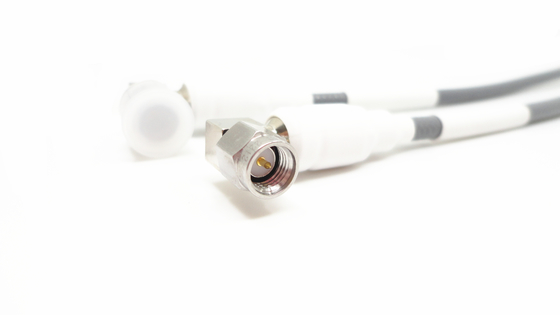

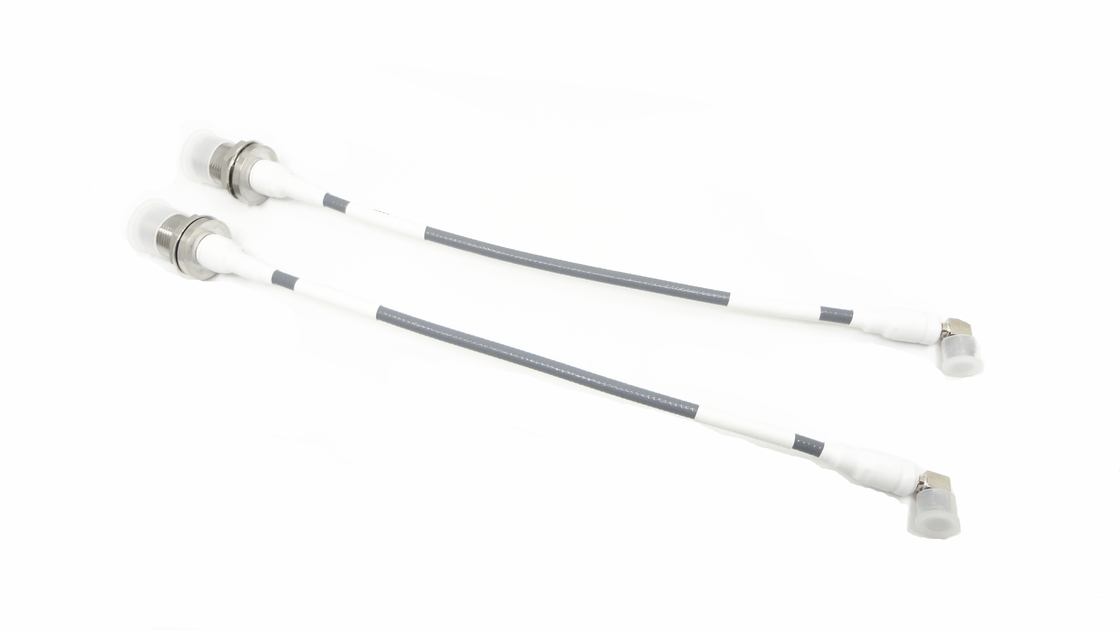

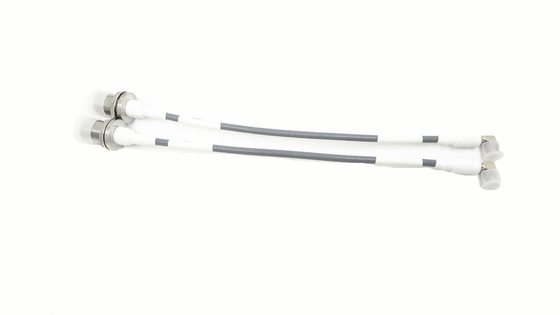

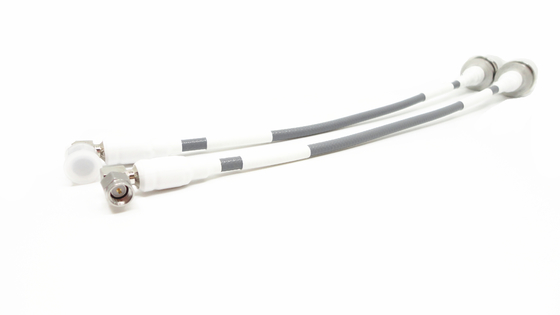

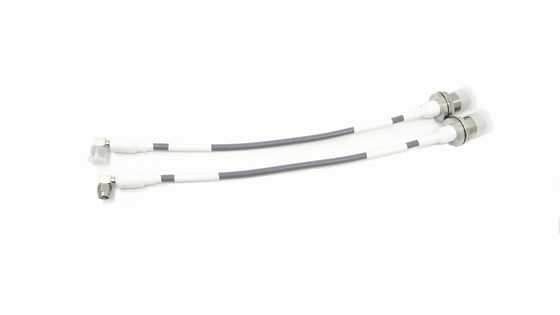

N Female to SMA Male Right Angle RF Cable Assembly L=270
We can supply you with high-performance flexible and semi-rigid RF cable assemblies, including microwave cable assemblies up to 40GHz. Due to our automated coaxial cable preparation equipment, you will benefit from reduced build times and high volume production runs. This helps to keep your costs down too.
Specifiacation:
| Electrical Characteristics | ||
| Characteristic Impedance | 50Ohm | |
| Frequency Range | 0~3GHz | |
| VSWR | ≤1.22 | |
| Dielectric Withstanding Voltage | ≥1000VRMS,50Hz, at sea level | |
| Dielectric Resistance | ≥1000MΩ | |
| Contact Resistance | Center conductor | ≤3mΩ |
| Outer conductor | ≤2mΩ | |
| Material & Mechanical Characteristics | ||
| Body | Brass Au Plated | |
| Insulator | PTFE | |
| Center conductor | Brass Au Plated | |
| Durability | Mating cycles ≥500 | |
| Temperature Range | -55-+155℃ | |
| Suitable for cable | RG316 | |
| Interface | According to IEC60169-52 | |
Application:
Xi'an Elite Electronic has a wide variety of pre-configured coaxial cable assemblies designed to provide additional benefits in certain applications. The assemblies are engineered using connectors that meet special qualifications such as being optimized for higher frequencies or constructed to withstand external elements.
Industral:
-Aerospace
-Rail
-Medical
-Space
-Telecom
-Industrial
-Test & Measurement
Detailed Drawing
Purchasing of ready-made microwave cable assembly lines provides important benefits:
• Perfect assembly, no rejects
• No need for training assembly personnel
• No capital investment for assembly provisions
• Precisely matched cables and connectors from the same manufacturer
• Xi'an Elite Electronic guaranties quality
Assembly shop capability:
*Automatic stripping
*Automatic laser stripping
*Temperature controlled soldering
*Clean room
*Laser marking
