| Product Name: | RF Coaxial Conector | Material: | Tin Phosphor Bronze Silver Plating |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | DC~7.5GHz |
| Model: | N Male | Gender: | Male |

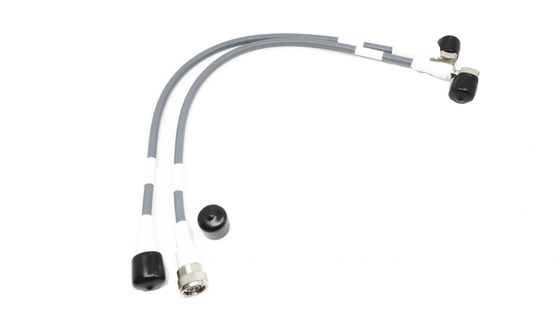

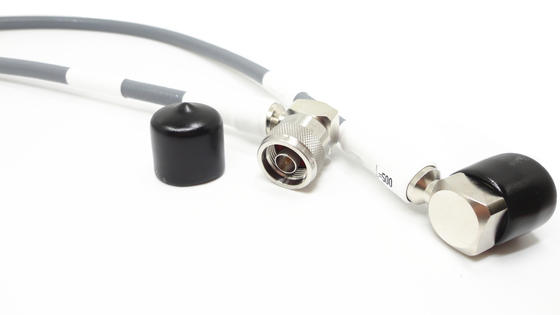

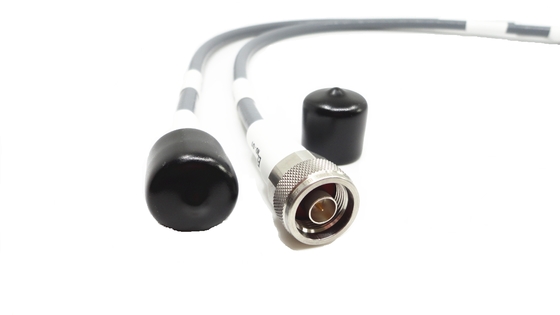

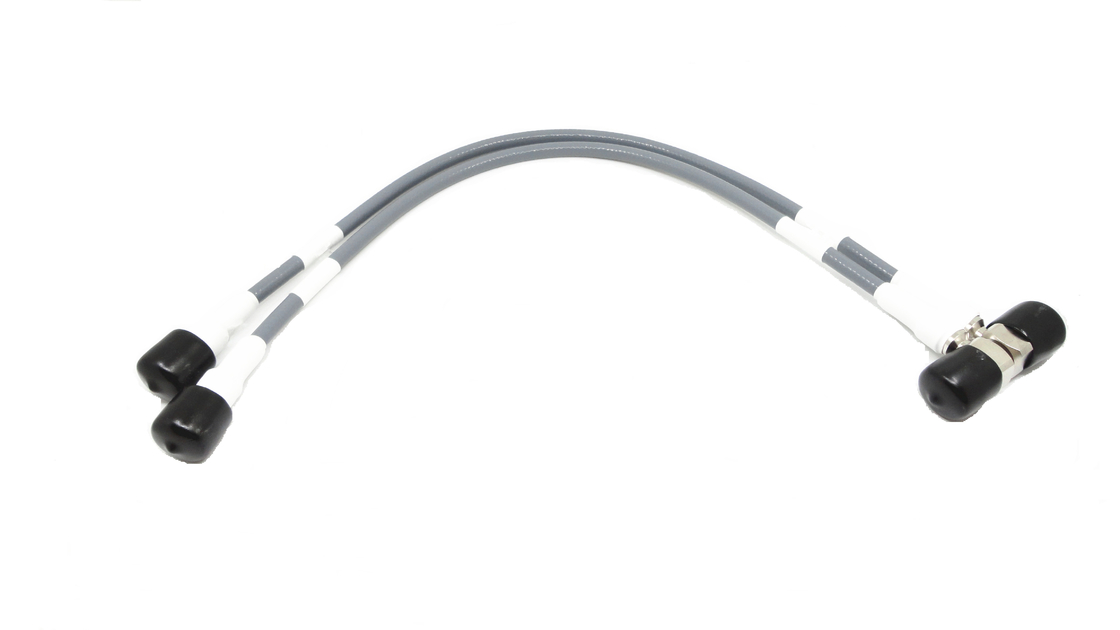

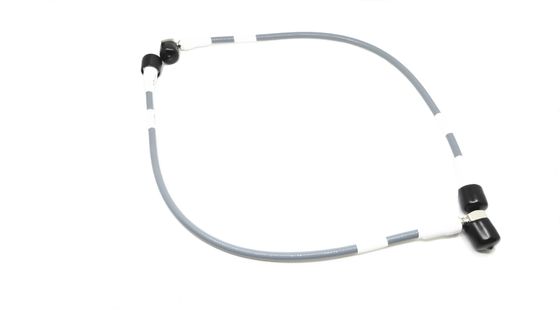

| High Light: | Customized Right Angle RF Cable Assembly,Low PIM RF Cable Assembly,N Male Cable Harness Assembly |
||
Our line of high-performance precision test cables (ATC-PS) feature additional phase stable and low loss capabilities which makes them ideal for test and measurement laboratory usage. Custom cable assemblies are available and offer a more tailored solution than standard products. For more information, contact us
Product Specification:
Electrical Characteristics
| Impedance | 50Ohm |
| Frequency range | DC~7.5GHz |
| VSWR | ≤1.15(0-3GHz) |
| Dielectric Withstanding Voltage | 2700V rms |
| Test voltage | 4000V rms |
Material & Mechanical Characteristics
| Center Conductor | Tin phosphor bronze, Silver Plating |
| Insulators | PTFE |
| Body | Brass Ternary Alloy Plating |
| Other Metal Parts | Brass, Alloy Plating |
| Gasket | Silicone Rubber |
Product Features:
offers a robust portfolio of coaxial cables assemblies for use in radio frequency applications. These assemblies are available for all industry standard coax cable types engineered with in-series (similar) or between-series (dissimilar) interfaces or in some cases an unterminated or blunt cut end on one side of the assembly.
Purchasing of ready-made microwave cable assembly lines provides important benefits:
• Perfect assembly, no defective products
• No assembler training required
• No capital investment for assembly preparation
• Precisely matched cables and connectors
The same manufacturer
• Xi 'an Elite electronic quality assurance
Assembly shop capability:
*Automatic stripping
*Automatic laser stripping
*Temperature controlled soldering
*Clean room
*Laser marking
Applications:
* Computer/LANs
* Base Station
* Automotive
* Basic facility
* Outdoor facilities
* Radar,microwave
* Telecommunications
* Radio, TV aerial system
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide to Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
