4 Hole Flange Male 40GHz RF Coaxial Connector Stainless Steel Material

I'm Online Chat Now
Certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
Product was exactly as expected and of high quality. Service was excellent. Will definitely order from again.

—— Gregory,USA

Understood my requirements and sought the right parts.

—— Ian, New Zealand

It has been a great pleasure dealing with you and thank you for your help and suggestion. Hope that there will be more copperation in the near future.

—— Terence, Singapore

The SMP connectors are high quality, the leak rate can reach 1*10^-9 mbar*l/s. A great deal with such an economic price.

—— Jonh,United States

Professional Seller

—— Abdu,Saudi Arabia

4 Hole Flange Male 40GHz RF Coaxial Connector Stainless Steel Material

4 Hole Flange Male 40GHz RF Coaxial Connector Stainless Steel Material
4 Hole Flange Male 40GHz RF Coaxial Connector Stainless Steel Material 4 Hole Flange Male 40GHz RF Coaxial Connector Stainless Steel Material

Large Image :  4 Hole Flange Male 40GHz RF Coaxial Connector Stainless Steel Material Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT
Certification: CE,ROHS
Model Number: K-JFD4G
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 35000pcs/year
Detailed Product Description
Material: Stainless Steel Gender: Male
Product Name: 2.92mm,K Type,SMK Keywords: Cable Connector
Item: Millimeter Wave Connectors Plating: Nickel Plated
Application: RF
High Light:

4 Hole RF Coaxial Connector

,

Flange Male RF Coaxial Connector 40GHz

,

Stainless Steel Material 2.92mm RF Connector

4-hole Flange Male 40GHz RF Coaxial Connector Stainless Steel Material



Xi'an Elite Electronic is a 2.92mm Female to 2.92mm Female in series adapter manufactured. This in series 2.92mm to 2.92mm coax adapter will operate up to 40 GHz. Adapters that have a male to female or plug to jack configuration are known as "connector savers." Typically, a low loss or low VSWR male to female adapter is placed on more expensive component connectors to prevent damage. Bulkhead adapters and right angle adapters are also available.

The 2.92 series is a precision millimeter wave connector developed on the basis of SMA, which is compatible and interchangeable with SMA, 3.5 series products, using air interface, with the advantages of small size, light weight, high frequency, reliable connection, etc., widely used in modern precision measurement field and all kinds of millimeter wave communication equipment.

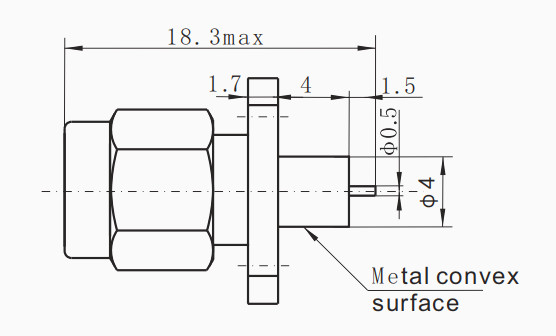

4 Hole Flange Male 40GHz RF Coaxial Connector Stainless Steel Material 0
Specification:
4 Hole Flange Male 40GHz RF Coaxial Connector Stainless Steel Material 1

Impedance 50 Ω
Frequency Range DC - 40 GHz
Voltage Rating 250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage 750 VRMS (Max. Sea Level)

Voltage Standing Wave Ratio
VSWR

≤ 1.05 + 0.005f
Contact Resistance Center Conductor ≤ 3.0 mΩ
  Outer Conductor ≤ 2.0 mΩ
Insulation Resistance ≥ 5000 MΩ
Inner Conductor Male plug:      Brass, Gold Plated
  Female Jack: Beryllium bronze, Gold Plated
Body / Shell / Housing

Brass, Gold Plated, Stainless Steel, Passivated

Insulator PEI/PLF
Gasket Silicone Rubber
Temperature -55℃ ~ +125℃
Durability 500 Cycles
Torque 0.79 ~ 1.13 N.m


Features:

* Frequency range DC to 40 GHz
* Low VSWR
* Low RF Leakage
* Superior reliability
* Compatible with SMA and 3.5mm connector series


Application:

* High Speed Digital
* Instrumentation
* Military
* Aerospace
* Satellite Communication Equipment (SATCOM)
* Cable Assemblies
* Test and measurement



Related products:

4 Hole Flange Male 40GHz RF Coaxial Connector Stainless Steel Material 2

 K-KFD196G  K female 2-hole flange straight stainless steel connector

4 Hole Flange Male 40GHz RF Coaxial Connector Stainless Steel Material 3

K-KFD179G K female 2-hole flange straight stainless steel connector
