Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Gender: | Female |
|---|---|---|---|
| Product Name: | 2.92mm,K Type,SMK | Keywords: | Cable Connector |
| Item: | Millimeter Wave Connectors | Plating: | Nickel Plated |
| Application: | RF | ||
| High Light: | Flange Female 2.92mm RF Connector,2 Hole 2.92mm RF Connector,Stainless Steel RF Cable Connector 40GHz |
||

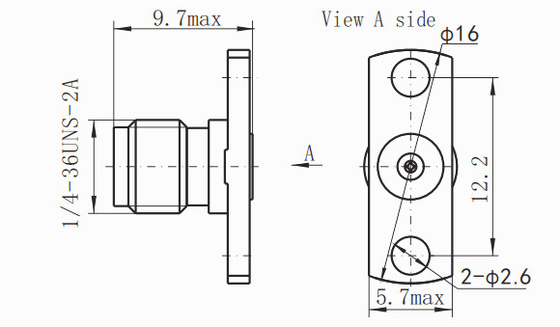

Accept pinφ0.4±0.02,hole depth 2mm, 2-hole Flange Female 40GHz RF Connector Stainless Steel
Xi'an Elite Electronic is a 2.92mm Female to 2.92mm Female in series adapter manufactured. This in series 2.92mm to 2.92mm coax adapter will operate up to 40GHz. Adapters that have a male to female or plug to jack configuration are known as "connector savers." Typically, a low loss or low VSWR male to female adapter is placed on more expensive component connectors to prevent damage. Bulkhead adapters and right angle adapters are also available.
The 2.92mm connector is a pin seat connector that uses an air filled interface to ensure modeless operation within 40GHz. It is also known as a K-connector. This connector is mechanically connected to 3.5mm and SMA connectors, but a discontinuity is introduced at the node, which must be considered. The 2.92mm connector has a shorter pin than the 3.5mm and SMA connectors, allowing the outer conductor to align before the pin meets the socket contact when mating the connector. Therefore, the connector is not easy to be damaged in industrial use.
Specification:
| Impedance | 50Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: Beryllium bronze, Gold Plated | |
| Body / Shell / Housing |
Brass, Gold Plated, Stainless Steel, Passivated |
| Insulator | PEI/PLF |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Features:
* Frequency range DC to 40GHz
* Low VSWR
* Low RF Leakage
* Superior reliability
* Compatible with SMA and 3.5mm connector series
Application:
* High Speed Digital
* Instrumentation
* Satellite Communication Equipment (SATCOM)
* Cable Assemblies
* Test and measurement
Related products:
| K-KFD179G | K female 2-hole flange stainless steel | Accept pinφ0.3 ±0.02,hole depth 2.0mm |
| K-JFD4G | K male 4-hole flange straight stainless steel connector |
