Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Gender: | Female To Female |
|---|---|---|---|
| Product Name: | 2.92mm, K Type, SMK | Keywords: | Cable Connector |
| Item: | Millimeter Wave Connectors | Plating: | Nickel Plated |
| Application: | RF | ||
| High Light: | 17.3mm RF Adapter Cable Connector,K2.92mm Female To Female RF Connector,Stainless Steel Female RF Cable Connector |
||

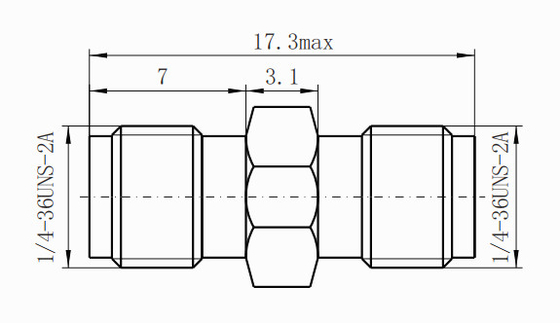

RF Adapter K2.92mm Female to Female RF Connector Stainless Steel Material 17.3mm Max
Xi'an Elite Electronic's 2.92 precision connectors have an impedance of 50Ω and an outer diameter of 2.92mm. They are applicable for test & measurement applications up to 40GHz, allow these high-quality connectors to meet the highest levels of reliability and repeatability performance. 2.92 connectors are intermateable with most 2.92, 3.5, SMA, as well as K connectors.
From the series of RF connectors, the 2.92mm K connectors are the part of a very wide range of radio frequency connect sections.
2.92mm connectors are male and female in genders, the male pin is shorter than that of 3.5mm to ensure that the external contacts of the male and female connectors involve before the pin and female receptacle do. RF connector 2.92mm covers the frequency range from 18GHz to 40GHz.
Specification:
| Impedance | 50Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: Beryllium bronze, Gold Plated | |
| Body / Shell / Housing |
Brass, Gold Plated, Stainless Steel, Passivated |
| Insulator | PEI/PLF |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Features:
* Frequency range DC to 40GHz
* Low VSWR
* Low RF Leakage
* Superior reliability
* Compatible with SMA and 3.5mm connector series
Application:
* High Speed Digital
* Instrumentation
* Satellite Communication Equipment (SATCOM)
* Cable Assemblies
* Test and measurement
Related products:
| K-JJG-LPC | K male to female straight stainless steel adapter |
| K-JKG | K male to female straight stainless steel adapter |
| K-KFKG | K Female to Female Stainless Steel 4-hole Flange Adapter |
