| Material: | Stainless Steel | Gender: | Male |
|---|---|---|---|
| Product Name: | 2.92mm,K Type,SMK | Keywords: | Cable Connector |
| Item: | Millimeter Wave Connectors | Plating: | Nickel Plated |
| Application: | RF | Surface Plating: | Passivate |
| High Light: | Male Right Angle Coaxial Connectors,2.92mm Right Angle Coaxial Connectors,MF30A Cable Coaxial Connectors |
||

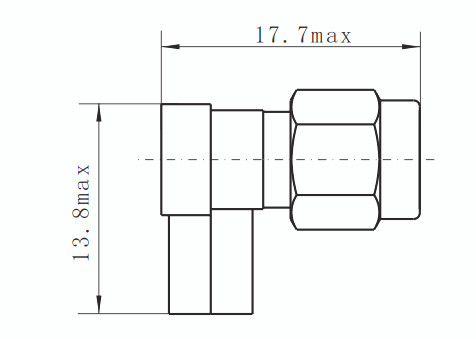

Precision K (2.92mm) MF30A Cable Male Right Angle Coaxial Connectors SMK 2.92mm
Xi'an Elite Electronic's 2.92 precision connectors have an impedance of 50 Ω and an outer diameter of 2.92 mm. They are applicable for test & measurement applications up to 40 GHz, allow these high-quality connectors to meet the highest levels of reliability and repeatability performance. 2.92 connectors are intermateable with most 2.92, 3.50, SMA, as well as K connectors.
Xi' an Elite Electronic's 2.92 mm connector provides an excellent solution for demanding applications requiring high frequency transmission. Although similar to the SMA interface, a smaller internal body diameter (2.92 mm) and air dielectric provide a higher cutoff frequency and other key advantages.
Specification:
| Impedance | 50 Ω |
| Frequency Range | DC - 40 GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: Beryllium bronze, Gold Plated | |
| Body / Shell / Housing |
Brass, Gold Plated, Stainless Steel, Passivated |
| Insulator | PEI/PLF |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Features:
*Precision manufacturing allows superior electrical performance to 40 GHz
*Precise assembly tooling assures excellent, repeatable contact, and support bead location on cabled connectors
*Mating interface control provides consistent electrical performance
*The field replaceable jacks are teamed with a high quality hermetic seal feed through for use in sealed circuit modules
The 2.92 mm plug interface employs more precise dimensions than an SMA.
Application:
*Optical test
*Laboratory and bench testing
*SATCOM
*Microwave
*Quantum computing
Related products:
| K-J130G | K male straight stainless steel for MF30A |
| K-J130G-1 | K female straight stainless steel for MF30A |
| K-K130G | K Female Right Angle Stainless Steel for MF30A |
