| Material: | Stainless Steel | Gender: | Female |
|---|---|---|---|
| Product Name: | 2.92mm,K Type,SMK | Keywords: | Cable Connector |
| Item: | Millimeter Wave Connectors | Plating: | Nickel Plated |
| Application: | RF | Surface Plating: | Passivate |
| High Light: | Female Cable Coaxial Connectors,K2.92mm Cable Coaxial Connectors,MF30A Cable Precision Connectors |
||

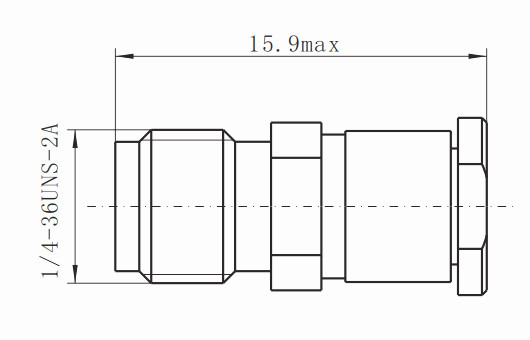

Female Stainless Steel Precision K (2.92mm) MF30A Cable Coaxial Connectors SMK 2.92mm
Xi'an Elite Electronic's 2.92 precision connectors have an impedance of 50 Ω and an outer diameter of 2.92 mm. They are applicable for test & measurement applications up to 40 GHz, allow these high-quality connectors to meet the highest levels of reliability and repeatability performance. 2.92 connectors are intermateable with most 2.92, 3.50, SMA, as well as K connectors.
The wide product range comprises cable, PCB and panel connectors, adaptors, interchangeable port connectors, attenuators as well as test & measurement accessories. These include 2.92 calibration kits, test cables, opens, shorts, loads, attenuators, airlines or sliding loads.
Specification:
| Impedance | 50 Ω |
| Frequency Range | DC - 40 GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: Beryllium bronze, Gold Plated | |
| Body / Shell / Housing |
Brass, Gold Plated, Stainless Steel, Passivated |
| Insulator | PEI/PLF |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Features:
*Impedance 50 Ω
*Frequency range DC up to 40 GHz
*Mating cycles ≥ 500
*Air dielectric
*Stainless steel outer contact
Application:
*Optical test
*Laboratory and bench testing
*Military
*SATCOM
*Microwave
*Quantum computing
Related products:
| K-J130G | K male straight stainless steel for MF30A |
| K-J130G-1 | K female straight stainless steel for MF30A |
| K-JW130G-3 | K Male Right Angle Stainless Steel for MF30A | High temperature resistance 250°C |
