Male Stainless Steel Precision 2.92mm RF Connector MF30A Cable Coaxial Connectors SMK

Large Image : Male Stainless Steel Precision 2.92mm RF Connector MF30A Cable Coaxial Connectors SMK Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT
Certification:	CE,ROHS
Model Number:	K-J130G-1

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	35000pcs/year

Contact Now

Detailed Product Description

Material:	Stainless Steel	Gender:	Male
Product Name:	2.92mm,K Type,SMK	Keywords:	Cable Connector
Item:	Millimeter Wave Connectors	Plating:	Nickel Plated
Application:	RF	Surface Plating:	Passivate
Highlight:	Male Stainless Steel 2.92mm RF Connector , Coaxial 2.92mm RF Connector , Cable Coaxial Connectors SMK

MF30A Cable Coaxial Connectors SMK 2.92mm Male Stainless Steel Precision K (2.92mm)

2.92mm (K) Connectors are RF/Microwave coaxial connectors that operate mode-free up to 40 GHz. These connectors are compatible to mate with SMA and 3.5mm connectors. The 2.92mm connectors were originally introduced by Mario Maury in 1974 and then re-introduced by Wiltron in 1984 as the K connector are ideal for high-frequency module and T&M applications.

Male Stainless Steel Precision 2.92mm RF Connector MF30A Cable Coaxial Connectors SMK 0
Specification:

Impedance	50 Ω
Frequency Range	DC - 40 GHz
Voltage Rating	250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage	750 VRMS (Max. Sea Level)
Voltage Standing Wave Ratio VSWR	≤ 1.05 + 0.005f
Contact Resistance	Center Conductor ≤ 3.0 mΩ
	Outer Conductor ≤ 2.0 mΩ
Insulation Resistance	≥ 5000 MΩ

Inner Conductor	Male plug: Brass, Gold Plated
	Female Jack: Beryllium bronze, Gold Plated
Body / Shell / Housing	Brass, Gold Plated, Stainless Steel, Passivated
Insulator	PEI/PLF
Gasket	Silicone Rubber
Temperature	-55℃ ~ +125℃
Durability	500 Cycles
Torque	0.79 ~ 1.13 N.m

Features:

*Precision manufacturing allows superior electrical performance to 40 GHz
*Female contacts have a unique three-slot construction, which enhances connectivity by creating a more rugged connector while reducing the chance of intermittent connections
*Precise assembly tooling assures excellent, repeatable contact, and support bead location on cabled connectors

Application:

*Optical test

*Laboratory and bench testing

*Military

*SATCOM

*Microwave

*Quantum computing

Related products:

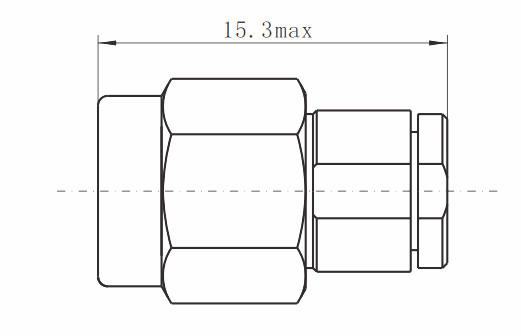

Male Stainless Steel Precision 2.92mm RF Connector MF30A Cable Coaxial Connectors SMK 2

K-J130G

K male straight stainless steel for MF30A

Male Stainless Steel Precision 2.92mm RF Connector MF30A Cable Coaxial Connectors SMK 3
