Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Gender: | Male |
|---|---|---|---|
| Product Name: | 2.92mm,K Type,SMK | Keywords: | Cable Connector |
| Item: | Millimeter Wave Connectors | Plating: | Nickel Plated |
| Application: | RF | Surface Plating: | Passivate |
| High Light: | Precision Male 2.92mm RF Connector,MF363A Cable RF Connector,CXN3507 Cable Coaxial Connectors |
||

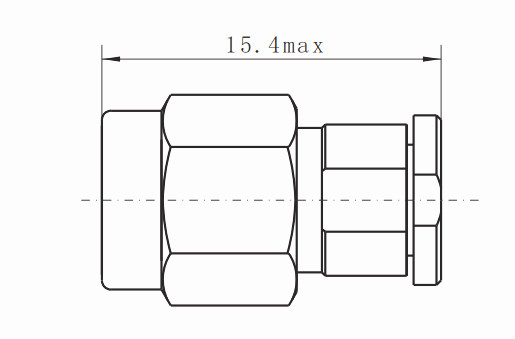

Precision Male 2.92mm RF Connector for CXN3507/MF363A Cable Connector
The 2.92mm coaxial bus connector of Xi'an Elite Electronics is part of a very wide selection of RF interconnect components. The 2.92mm coaxial line bus connector of Xi'an Elite Electronics includes bus type with 50Ohm impedance level. Our coaxial line 2.92mm female connector has standard polarity design, including diaphragm type, 4-hole flange type and bracket free type.
Xi'an Elite Electronic features their SMK series 2.92 mm connectors designed for high frequency transmission applications
Image of Xi'an Elite's SMK Series 2.92 MM Connectors 2.92 mm connector provides an excellent solution for demanding applications requiring high frequency transmission. Although similar to the SMA interface, a smaller internal body diameter (2.92 mm) and air dielectric provide a higher cutoff frequency and other key advantages.
Specification:
| Impedance | 50Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: Beryllium bronze, Gold Plated | |
| Body / Shell / Housing |
Brass, Gold Plated, Stainless Steel, Passivated |
| Insulator | PEI/PLF |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Features:
*Precision manufacturing allows superior electrical performance to 40GHz
*Female contacts have a unique three-slot construction, which enhances connectivity by creating a more rugged connector while reducing the chance of intermittent connections
*Precise assembly tooling assures excellent, repeatable contact, and support bead location on cabled connectors
Application:
*Optical test
*Laboratory and bench testing
*SATCOM
*Microwave
*Quantum computing
Related products:
| K-J506G | K male straight stainless steel for CXN3507/MF363A |
| K-K507G-1 | K female straight stainless steel for CXN3507/MF363A |
