Male Right Angle Stainless Steel K 2.92mm RF Coaxial Connector for CXN3506/MF108A Cable

Large Image : Male Right Angle Stainless Steel K 2.92mm RF Coaxial Connector for CXN3506/MF108A Cable Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT
Certification:	CE,ROHS
Model Number:	K-JW506G

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	35000pcs/year

Contact Now

Detailed Product Description

Material:	Stainless Steel	Gender:	Male
Product Name:	2.92mm,K Type,SMK	Keywords:	Cable Connector
Item:	Millimeter Wave Connectors	Plating:	Nickel Plated
Application:	RF	Surface Plating:	Passivate
Highlight:	K 2.92mm RF Coaxial Connector , CXN3506 RF Coaxial Connector , MF108A RF Coaxial Connector

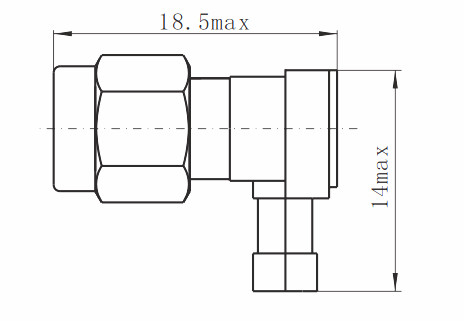

Male Right Angle Stainless Steel K(2.92mm) RF Coaxial Connector for CXN3506/MF108A Cable

Xi'an Elite Electronic’s right angle cable assemblies and connectors provide excellent electrical performance from DC up to 40GHz. No need to sacrifice performance for space, these high-performance connectors are compact in size and have outstanding durability. Currently available for CXN3506 and MF108A cable types and in SMA and 2.92mm series.

Male Right Angle Stainless Steel K 2.92mm RF Coaxial Connector for CXN3506/MF108A Cable 0
Specification:

Impedance	50Ω
Frequency Range	DC - 40GHz
Voltage Rating	250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage	750 VRMS (Max. Sea Level)
Voltage Standing Wave Ratio VSWR	≤ 1.05 + 0.005f
Contact Resistance	Center Conductor ≤ 3.0 mΩ
	Outer Conductor ≤ 2.0 mΩ
Insulation Resistance	≥ 5000 MΩ

Inner Conductor	Male plug: Brass, Gold Plated
	Female Jack: Beryllium bronze, Gold Plated
Body / Shell / Housing	Brass, Gold Plated, Stainless Steel, Passivated
Insulator	PEI/PLF
Gasket	Silicone Rubber
Temperature	-55℃ ~ +125℃
Durability	500 Cycles
Torque	0.79 ~ 1.13 N.m

Features:

*Space saving design reduces stress on solder joint.
*Replaces the need for tight bend of cable in order to fit in a tight spot.
*Standard flexible or semi-rigid cable termination.

Application:

*Rugged high-frequency RF applications
*Rapid prototyping
*High speed digital component test
*5G wireless test applications

Related products:

Male Right Angle Stainless Steel K 2.92mm RF Coaxial Connector for CXN3506/MF108A Cable 2

K-K506G

K female right angle stainless steel for CXN3506/MF108A

Male Right Angle Stainless Steel K 2.92mm RF Coaxial Connector for CXN3506/MF108A Cable 3

K-J506G

K male stainless steel for CXN3506/MF108A cable

Tag:

Contact Person: Elite

Tel: +8613609167652
