Product Details:
Payment & Shipping Terms:
|
| Product Name: | SSMP/SMPM/Mini SMP Connector | Gender: | Jack To Jack |
|---|---|---|---|
| Material: | Brass | Plating: | Gold Plated |
| Impedance: | 50Ω | Frequency Range: | DC~50GHz |
| Other Names: | Mini SMP, SMPM | Body Style: | Straight |
| Model: | SSMP-KK232 | ||
| High Light: | SSMP Female To Female RF Connector,Bullet Female To Female RF Connector,SSMP Board To Board Connector |
||
Introduction
SSMP is a kind of miniature push in RF coaxial connector, which has the characteristics of small size (compared with SMP), light weight, wide working range, etc. It is applicable to the coupling use of board to board connectors and the occasion of intensive modular installation. The plug has two interface forms, namely, full thread type and non threaded hole.
The RF interconnection products of this series meet the requirements of small package design. It can be used for high-speed signal transmission applications or use floating bullets in the board to board system.
This floating marble provides a link between the paired pairs and compensates for radial and axial misalignment.
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
Material & Mechanical Characteristics:
Center Conductor:
Male: Sn-P Bronze/Kovar, Gold plated
Female: Beryllium bronze, Gold plated
Elastic Contact:Beryllium bronze Gold plated
Body and other Metal Parts: Brass/Kovar Gold plated

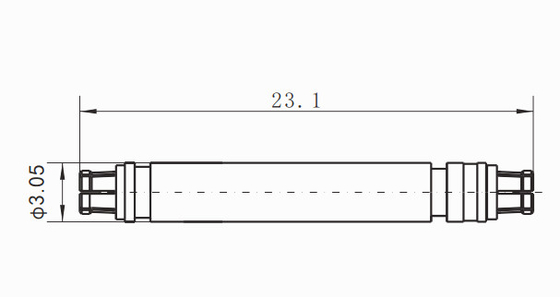

Product Drawing:
Features:
-Higher frequency range to 50GHz
-SMPM (SSMP) is a subminiature, push in micro interface connector, which can be widely used in the telecommunications field.
-The SMPM series includes PC mounting, straight and right angle mounting and sealable flange mounting.
-All male connectors are provided with full concave or smooth hole design to meet your preference for separation force.
Application:
*Board-to-board interconnect
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications
Related products:
| SSMP Female to Female RF Adapter | Length=4mm | Diameter=φ2.4 max |
| SSMP Female to Female RF Adapter | Length=6mm | Diameter=φ2.8 |
| SSMP Female to Female RF Adapter | Length=4.55mm | Diameter=φ2.79 max |
| SSMP Female to Female RF Adapter | Length=8.6mm | Diameter=φ2.79 max |
| SSMP Female to Female RF Adapter | Length=15.55mm | Diameter=φ2.79 |
| SSMP Female to Female RF Adapter | Length=8mm | Diameter=φ2.79 max |
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
