Product Details:
Payment & Shipping Terms:
|
| Product Name: | SSMP, SMPM, Mini SMP Connector | Gender: | Jack To Jack |
|---|---|---|---|
| Material: | Brass | Plating: | Gold Plated |
| Impedance: | 50Ω | Frequency Range: | DC~50GHz |
| Other Names: | Mini SMP, SMPM | Body Style: | Straight |
| Model: | SSMP-KK178 | ||
| High Light: | SSMP Female To Female RF Connector,SSMP Female To Female RF Adapter,Gold Plated Female To Female RF Adapter |
||
Introduction
SSMP is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with SMP), light weight, wide working broadband, etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting and the plug has two interface form with full detent and unthreaded hole.
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
Material & Mechanical Characteristics:
Center Conductor:
Male: Sn-P Bronze/Kovar, Gold plated
Female: Beryllium bronze, Gold plated
Elastic Contact: Beryllium bronze Gold plated
Body and other Metal Parts: Brass/Kovar Gold plated

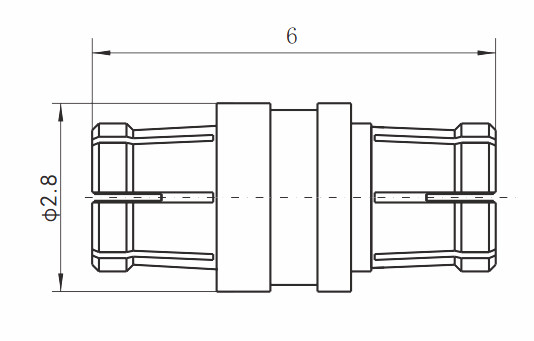

Product Drawing:
Features:
-Low VSWR through 40GHz(SMP)/50GHz(SMPM)
-Female cable connector options available for all flexible cable types .086” diameter and smaller
-All standard SMP/SMPM male connector options available upon request
-Low insertion/extraction forces, compared to standard full detent SMP and SMPM, mean less torque on board mount connector solder joints during mating and demating
-Spring loaded positive mating feature allows excellent electrical performance even in extreme vibration environments
-Low mating forces allow for more mating cycles without failure compared to full detent SMP and SMPM
Application:
Bench-top testing (PCB mount, cable connectors and adapters)
High vibration environments
Applications requiring a high number of mating cycles
High performance and Commercial options available
Related products:
| SSMP Female to Female RF Adapter | Length=15.55mm | Diameter=φ2.79 max |
| SSMP Female to Female RF Adapter | Length=4.55mm | Diameter=φ2.79 max |
| SSMP Female to Female RF Adapter | Length=23.1mm | Diameter=φ3.05 |
| SSMP Female to Female RF Adapter | Length=8mm | Diameter=φ2.79 max |
Factory& Production Line:
Xi'an Elite Electronic is a product and solution provider, the company provides high quality, high performance, cable assembly/connector products. Xi'an Elite Electronic engages in R&D, for telecom and electronics products with a focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors and high-end test/calibration products. The company has the capacity of product design, engineering service, low-cost production/sourcing, assembly and testing.
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
