Bullet SMPM RF Connector Adapter Board to Board Connector Adapter

Bullet SMPM RF Connector Adapter Board to Board Connector Adapter
Bullet SMPM RF Connector Adapter Board to Board Connector Adapter Bullet SMPM RF Connector Adapter Board to Board Connector Adapter

Large Image :  Bullet SMPM RF Connector Adapter Board to Board Connector Adapter Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: SSMP-KK80
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: within 3 weeks
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1,000,000pcs per month
Detailed Product Description
Product Name: SSMP/SMPM/Mini SMP Connector Gender: Jack To Jack
Material: Brass Plating: Gold Plated
Impedance: 50Ω Frequency Range: DC~50GHz
Other Names: Mini SMP, SMPM Body Style: Straight
Model: SSMP-KK80
High Light:

Bullet SMPM RF Connector

,

SMPM RF Connector Adapter

,

SMPM Board To Board Connector Adapter

Bullet SSMP Female to Female RF Adapter Board to Board Connector Adapter

Introduction

SSMP is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with SMP), light weight,wide working broadband,etc. Apply for the couple usage of board to board connectors ,for the situation of modular intensive mounting and the plug has two interface form with full detent and unthreaded hole.

The family of RF interconnects addresses small package design needs. It can be utilized for highspeed signal transmission applications

or in blindmate board-to-board systems using a floating bullet.
This floating bullet provides a link between mated pairs and compensates for both radial and axial misalignment.


Specification:
Electrical Characteristics
Impedance 50Ω
Frequency Range DC~50GHz
Rated Voltage 170VRMS*
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor Normal≤3.5mΩ, Sealing≤5mΩ
Center conductor Normal≤8mΩ, Sealing≤30mΩ
  DC~18GHz 18~26.5GHz 26.5~40GHz 40~50GHz
VSWR ≤1.25 ≤1.3 ≤1.4 ≤1.5



Material & Mechanical Characteristics:

Center Conductor:

Male: Sn-P Bronze/Kovar, Gold plated

Female: Beryllium bronze, Gold plated
Elastic Contact:Beryllium bronze Gold plated

Body and other Metal Parts: Brass/Kovar Gold plated

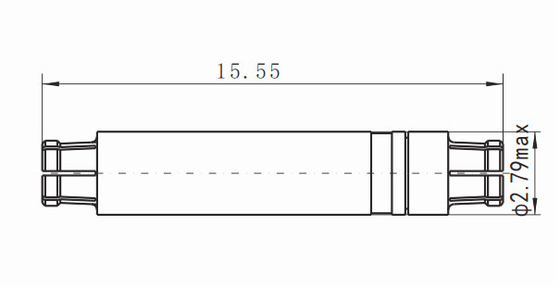

Product Drawing:

Bullet SMPM RF Connector Adapter Board to Board Connector Adapter 0

Features:



- Higher frequency range to 50GHz
- SMPM (SSMP) is a sub-miniature, push-on style micro-interfaces connectors can be widely used in telecom.
- SMPM series includes PC-mount, straight and right-angled,and sealable flange-mounts.
- All male connectors are offered as full-detent or smooth bore designs for your preference of separation forces.



Application:



*Board-to-board interconnect



*Aerospace



*Broadband



*Instrumentation



*Phased array antennas



*Telecommunications





Related products:

Bullet SMPM RF Connector Adapter Board to Board Connector Adapter 1

SSMP Female to Female RF Adapter         Length=4mm   Diameter=φ2.4 max

Bullet SMPM RF Connector Adapter Board to Board Connector Adapter 2

SSMP Female to Female RF Adapter Length=6mm Diameter=φ2.8

Bullet SMPM RF Connector Adapter Board to Board Connector Adapter 3

SSMP Female to Female RF Adapter Length=4.55mm Diameter=φ2.79 max

Bullet SMPM RF Connector Adapter Board to Board Connector Adapter 4

SSMP Female to Female RF Adapter Length=8.6mm Diameter=φ2.79 max

Bullet SMPM RF Connector Adapter Board to Board Connector Adapter 5

SSMP Female to Female RF Adapter Length=23.1mm Diameter=φ3.05

Bullet SMPM RF Connector Adapter Board to Board Connector Adapter 6

SSMP Female to Female RF Adapter Length=8mm Diameter=φ2.79 max



Factory& Production Line:

Bullet SMPM RF Connector Adapter Board to Board Connector Adapter 7



NOTE:

We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
