| Product Name: | SSMP, SMPM, Mini SMP Connector | Gender: | Jack To Jack |
|---|---|---|---|
| Material: | Brass | Plating: | Gold Plated |
| Impedance: | 50Ω | Frequency Range: | DC~50GHz |
| Other Names: | Mini SMP, SMPM | Body Style: | Straight |
| Model: | SSMP-KK41 | ||
| High Light: | Female To Female SSMP RF Adapter,50 SSMP RF Adapter,50 Board To Board Connector |
||
Introduction
SSMP is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting and the plug has two interface form with full detent and unthreaded hole.
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
Material & Mechanical Characteristics:
Center Conductor:
Male: Sn-P Bronze/Kovar, Gold plated
Female: Beryllium bronze, Gold plated
Elastic Contact: Beryllium bronze Gold plated
Body and other Metal Parts: Brass/Kovar Gold plated

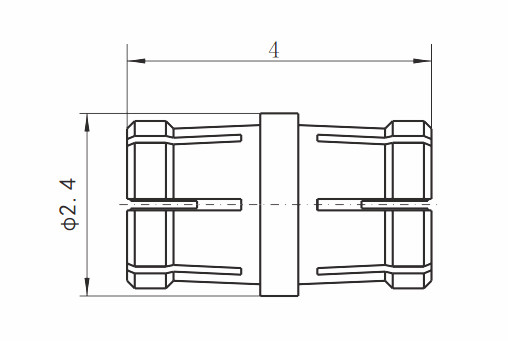

Product Drawing:
Features:
- Higher frequency range to 50GHz
- SMPM (SSMP) is a sub-miniature, push-on style micro-interfaces connectors can be widely used in telecom.
- SMPM series includes PC-mount, straight and right-angled, .047 cabled connectors and sealable flange-mounts.
- All male connectors are offered as full-detent or smooth bore designs for your preference of separation forces.
Application:
*Board-to-board interconnect
*Aerospace
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications
Related products:
| SSMP Female to Female RF Adapter | Length=15.55mm | Diameter=φ2.79 max |
| SSMP Female to Female RF Adapter | Length=6mm | Diameter=φ2.8 |
| SSMP Female to Female RF Adapter | Length=4.55mm | Diameter=φ2.79 max |
| SSMP Female to Female RF Adapter | Length=8.6mm | Diameter=φ2.79 max |
| SSMP Female to Female RF Adapter | Length=23.1mm | Diameter=φ3.05 |
| SSMP Female to Female RF Adapter | Length=8mm | Diameter=φ2.79 max |
Factory& Production Line:
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
