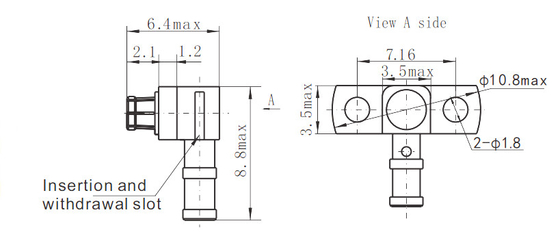

Right Angle 50Ohm SMPM RF Connector Full Detent Jack CXN3657/MF151A Flange Mount
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Height: | 8.8mm Max | Rated Voltage: | 85VRMS* |
|---|---|---|---|
| Material: | Brass | Plating: | Gold Plated |
| Impedance: | 50Ω | Frequency Range: | DC~50GHz |
| Interface: | Full Detent | Lifespan: | 500Cycles |
| Highlight: | 50 Ohm SMPM RF Connector,CXN3657 SMPM RF Connector,MF151A SMPM RF Connector |
||
RF Connector Mini SMP Right Angle Full Detent Jack CXN3657/MF151A Flange Mount 50Ohm
SSMP series product is an ultra-small push-in RF coaxial connector, which has the characters of small size(compared with SMP),
light weight, wide working frequency bandwidth, etc. Suitable for use in pairs of board-to-board connections, and the plug has
two interface form -full detent and smooth bore, for the situation of modular intensive mounting.
The family of RF interconnects addresses small package design needs. It can be utilized for highspeed signal transmission applications
or in blind-mate board-to-board systems using a floating bullet. This floating bullet provides a link between mated pairs and compensates for
both radial and axial misalignment.
Features
• Reliable electrical performance up to 50GHz
• Small package size
• Push-on and snap-on mating styles for quick installation
Specification
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~60GHz | ||||
| Rated Voltage | 85VRMS* | ||||
| Dielectrics Voltage-resistance | 250VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤2mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤6mΩ, Sealing≤25mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.35 | ≤1.4 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male | Sn-P Bronze/Kovar, Gold plated | |||
| Female | Beryllium bronze, Gold plated | ||||
| Elastic Contact | Beryllium bronze Gold plated | ||||
| Shell and other Metal Parts |
Brass/Kovar Gold plated Stainless steel Passivation |
||||
| Insulators | Glass sintering/PTFE/PEI | ||||
| Hermetic Product Leakage Rate | ≤1.01325×10-3Pa·cm3/s | ||||
Application:
• Antennas
• Back Plane
• Broadband
• Wireless
• Instrumentation
Packaging Details:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
