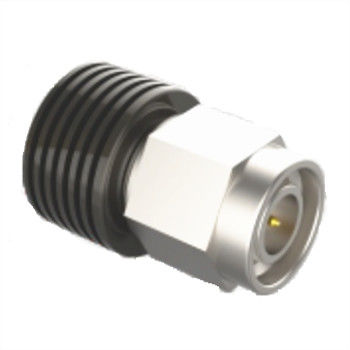

TNC Male Plug Termination Load 5Watts Low Power To 18 GHz 1.4 VSWR

TNC Male Plug Termination Load 5Watts Low Power To 18 GHz 1.4 VSWR
TNC Male Plug Termination Load 5Watts Low Power To 18 GHz 1.4 VSWR TNC Male Plug Termination Load 5Watts Low Power To 18 GHz 1.4 VSWR

Large Image :  TNC Male Plug Termination Load 5Watts Low Power To 18 GHz 1.4 VSWR Get Best Price

Product Details:
Place of Origin: Shaanxi, China
Brand Name: ELT
Certification: CE ROHS
Model Number: TNC-50JR-5W
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000000 Pieces Per Month
Detailed Product Description
Impedence: 50 Ohm Length: 27.4mm Max
Diameter: φ18 Frequency Range: DC-18GHz
Housing: Brass Note: Cylindrical Resistor
High Light:

Male Plug 50 Ohm Termination Load

,

1.4 VSWR RF Termination Load

,

RF Coaxial Connector Load Termination

TNC Male (Plug) Termination (Load) 5Watts low Power To 18 GHz 1.4 VSWR 5Watts Power



TNC male RF load from Xi'an Elite Electronic is 50 Ohm impedance and is rated for a maximum frequency of 18 GHz . Dummy load / RF termination has a maximum input power of 10 Watts and a maximum VSWR of 1.35:1



The low-power matched RF load designed and produced by Xi'an Elite Electronics has an impedance of 50 Ω, including SMA, SSMA, SMP, SSMP, CSMP, N, TNC, K2.92mm and other male and female interfaces, which can meet different needs of users.



Model No. TNC-50JR-5W
Power  5W
Frequency Range  DC-18GHz
VSWR  ≤1.4
Note  Cylindrical Resistor



TNC Male Plug Termination Load 5Watts Low Power To 18 GHz 1.4 VSWR 0



Details of TNC Male (Plug) Termination (Load) 5Watts low Power To 18 GHz 1.4 VSWR 5Watts Power




Advantage :



* High Reliable


* Reliable Mechanical Performance


* Wide Frequency Range from DC to 18GHz





Applications :



  • General Purpose Test
  • Communication
  • Precision Test and Measurement

◆   Wide Frequency Band



◆   2G/3G/4G/LTE Coverage



◆   Low VSWR



◆   Widely used for In-building Solutions





Key Features:

Polarity                Standard

Interface              TNC(Male)

Impedance           50Ω

Body Shape         Straight

50 ohms nominal impedance is standard


Performance Features:

Frequency Range:           DC~18GHz

VSWR                              DC~18GHz: ≤1.25

Average Power ≤2W

Durability                          500 Cycles

Operating Temperature    -55℃~+125℃


Material Specifications:

Housing Type Brass, Stainless Steel

Passivated

Center Contact Beryllium Copper

Gold Plated




Shipping Service:



The shipment will be delivered via major global expresses, such as DHL, UPS, FedEx etc. Currently, it will be sent out from Xi'an, China.
