3.5mm Male Stainless Steel RF Coaxial Connector for CXN3506 Cable 3.5mm Milimeter Wave

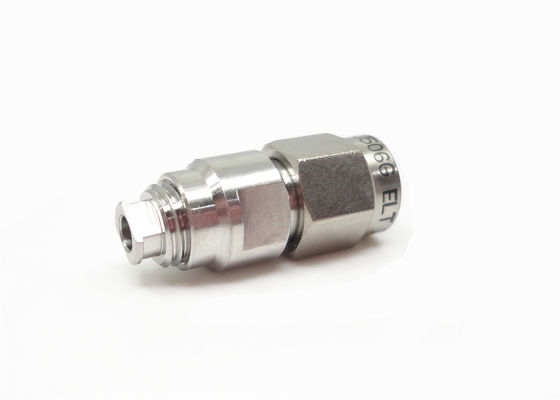

Large Image : 3.5mm Male Stainless Steel RF Coaxial Connector for CXN3506 Cable 3.5mm Milimeter Wave Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	CE Rohs ISO-9001
Model Number:	3.5-J506G

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within in 3 weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	10000 Pieces Per Month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Keywords:	3.5mm Connectors
Characteristic Impedence:	50Ω	Gender:	Female
Durability:	500 Cycles	Insulator:	PTFE
Application:	RF/Automotive/Base Station/ Radios /Satcom/Telecom	Frequency Range:	DC~33GHz
Highlight:	CXN3506 Rf Coaxial Cable Connector , Stainless Steel RF Coaxial Connector , Millimeter Wave Male Coaxial Connector

3.5mm Milimeter Wave RF Coaxial Male Connector for Cable

3.5mm connector is a common used millimeter wave connector, the frequency is 33GHZ (up to 36GHZ), use air interface, can mate and interchange with SMA series, K series connectors, with advantages of great bandwidth, high reliability, it is widely used in microwave measurement and millimeter wave devices.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~33GHz
Rated Voltage	335VRMS (Maximum sea-level)
Dielectrics Voltage-resistance	1000VRMS (Maximum sea-level)
Insulation Resistance	≥5000MΩ
Contact Resistance	Outer conductor	≤2mΩ
	Center conductor	≤3mΩ
VSMR	≤1.01+0.05f

Interface Dimension(mm)

3.5mm Male Stainless Steel RF Coaxial Connector for CXN3506 Cable 3.5mm Milimeter Wave 0

Outline Drawing:

3.5mm Male Stainless Steel RF Coaxial Connector for CXN3506 Cable 3.5mm Milimeter Wave 1

Materials and Mechanical Properties
Inner conductor	Male	Brass, Gold-plating
	Female	Beryllium Bronze,Gold-plating
Elastic		Beryllium Bronze,Nickel plated
Shell & other		Brass/Stainless steel Gold-plating/passivated
Insulator		PEI
Sealing ring		Silicone rubber
Temperature		-55C°~+125C°
Mating Cycles		500
Mating Torque		0.79N·m～1.13N·m
