3.5mm Male RF Coaxial Connector Plug Millimeter Wave Cable for MF147A/MF147B

3.5mm Male RF Coaxial Connector Plug Millimeter Wave Cable for MF147A/MF147B
3.5mm Male RF Coaxial Connector Plug Millimeter Wave Cable for MF147A/MF147B 3.5mm Male RF Coaxial Connector Plug Millimeter Wave Cable for MF147A/MF147B

Large Image :  3.5mm Male RF Coaxial Connector Plug Millimeter Wave Cable for MF147A/MF147B Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE Rohs ISO-9001
Model Number: 3.5-J416G
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within in 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000 Pieces Per Month
Detailed Product Description
Material: Brass Keywords: 3.5mm Connectors
Characteristic Impedence: 50Ω Gender: Male
Durability: 500 Cycles Insulator: PTFE
Application: RF/ Automotive/Base Station/ Radios /Satcom/Telecom Frequency: DC~33GHz
High Light:

3.5mm Male RF Coaxial Connector

,

Millimeter Wave RF Cable Connector

,

MF147B RF Coaxial Connector

3.5mm Male RF Coaxial Connector Plug Millimeter Wave Cable Connector for MF147A/MF147B



Our 3.5mm adapter PDF datasheet specifications with precise CAD drawing and dimensions are located on the product pages. 3.5mm female or male (jack or plug) adapters (sometimes called a 3.5mm cable coupler or gender changer when same genders) are available. These female or male (jack or plug) 3.5mm adapter coaxial interconnects are between series or in-series. Precision 3.5mm adapters can be found for those application requirements. Our superior quality RF adapters with 3.5mm interface are manufactured with beryllium copper, passivated stainless steel or stainless steel connector bodies.

Electrical Characteristics
Impedance
50Ω
Frequency Range
DC~33GHz
Rated Voltage
335VRMS (Maximum sea-level)
Dielectrics Voltage-resistance
1000VRMS (Maximum sea-level)
Insulation Resistance
≥5000MΩ

Contact Resistance
Outer conductor
≤2mΩ
Center conductor
≤3mΩ
VSMR
≤1.05+0.005f



Interface Dimension(mm)

3.5mm Male RF Coaxial Connector Plug Millimeter Wave Cable for MF147A/MF147B 0

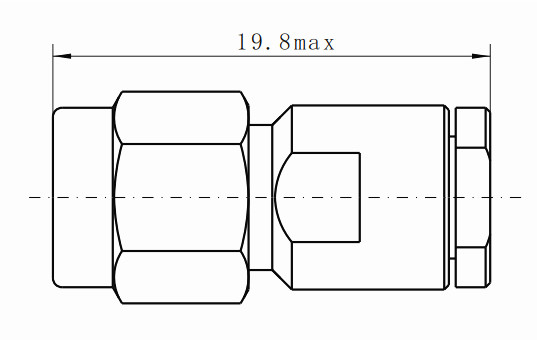

Outline Drawing:

3.5mm Male RF Coaxial Connector Plug Millimeter Wave Cable for MF147A/MF147B 1

Related products:

3.5mm Male RF Coaxial Connector Plug Millimeter Wave Cable for MF147A/MF147B 2

3.5-J417G 3.5 male stainless steel rf cable connector for CXN3449/MF503A

3.5mm Male RF Coaxial Connector Plug Millimeter Wave Cable for MF147A/MF147B 3

3.5-J506G 3.5 male stainless steel rf connector for CXN3506/MF108A



Features:



*Available in female to female, female to male, female to sexless, male to female, male to male or male to sexless gender combinations;
*33GHz 3.5mm adapter maximum frequency is provided;
*Allow to interface 3.5mm connectors with 1.85mm, 2.4mm, 2.92mm, 3.5mm, 7mm, Mini SMP, N or SSMA connectors;
*Can be Customized.
*Includes bulkhead, 4 holes panel or mountless configurations.



Applications of SMP RF Connectors:

- Antennas
- Broadband
- Aerospace

- Telecommunications

- Instrumentation
- Phased array antennas

- Board-to-board interconnect
