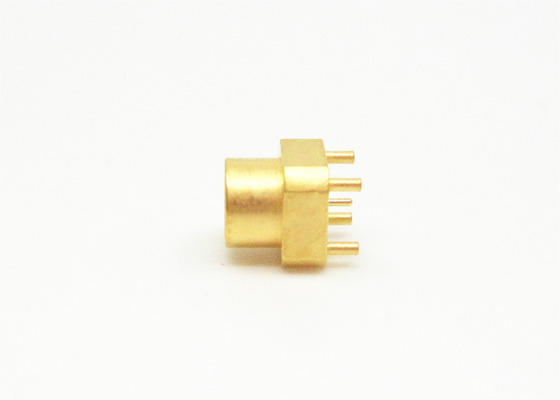

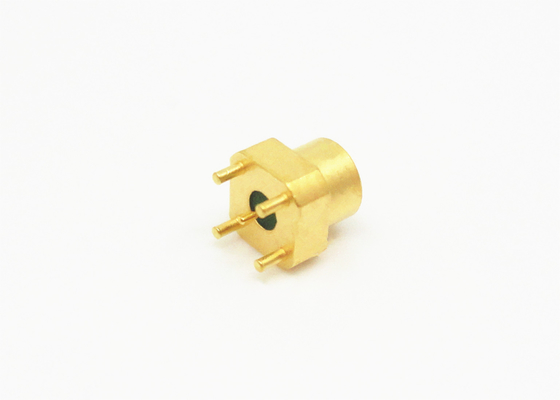

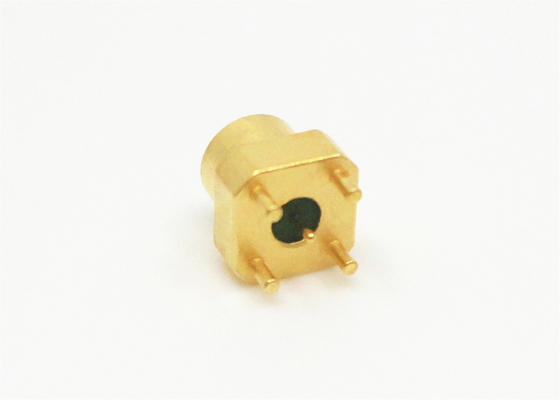

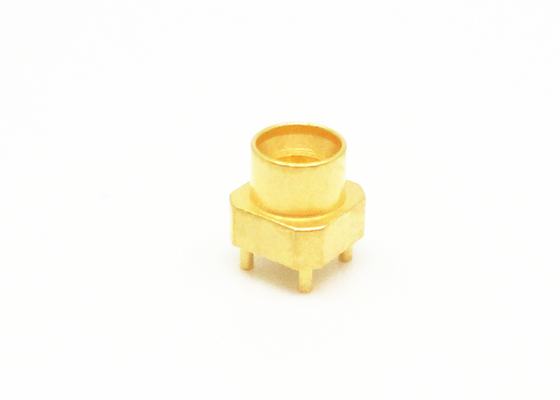

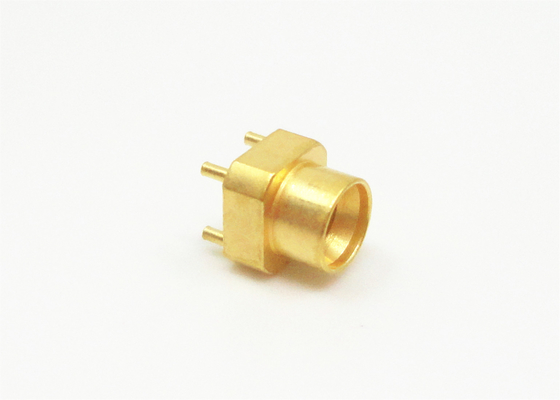

Mini SMP Series Male RF Connector Pin Header PCB Mount Full Detent 4 Short Legs

Mini SMP Series Male RF Connector Pin Header PCB Mount Full Detent 4 Short Legs
Mini SMP Series Male RF Connector Pin Header PCB Mount Full Detent 4 Short Legs Mini SMP Series Male RF Connector Pin Header PCB Mount Full Detent 4 Short Legs Mini SMP Series Male RF Connector Pin Header PCB Mount Full Detent 4 Short Legs Mini SMP Series Male RF Connector Pin Header PCB Mount Full Detent 4 Short Legs Mini SMP Series Male RF Connector Pin Header PCB Mount Full Detent 4 Short Legs Mini SMP Series Male RF Connector Pin Header PCB Mount Full Detent 4 Short Legs

Large Image :  Mini SMP Series Male RF Connector Pin Header PCB Mount Full Detent 4 Short Legs Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: ROHS ISO-9001-2015
Model Number: SSMP-JHD19
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1,000,000pcs per month
Detailed Product Description
Product Name: SSMP Hermetically Sealed Male Connector Gender: Male
Material: Kovar Plating: Gold Plated
Impedance: 50Ω Frequency Range: DC~50GHz
Rated Voltage: 170VRMS* Insulator: PTFE
High Light:

SMP RF Connector PCB Mount

,

4 Legs RF Connector PCB Mount

,

SMP rf pcb connector

Mini SMP Series Male RF Connector Pin Header PCB Mount Full Detent 4 Short Legs​



SMPM is a miniature push in RF coaxial connector, which has the characteristics of small volume (compared with mini SMP), light weight and wide working bandwidth. It is applicable to the coupling use of board to board connectors in the case of modular dense installation. The plug has two types of interface: full detent and unthreaded hole.


Specification
Electrical Characteristics
Impedance 50Ω
Frequency Range DC~50GHz
Rated Voltage 170VRMS*
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor ≤5mΩ
Center conductor ≤30mΩ
  DC~18GHz 18~26.5GHz 26.5~40GHz 40~50GHz
VSWR ≤1.25 ≤1.3 ≤1.4 ≤1.5
Material & Mechanical Characteristics
Center Conductor Male Kovar, Gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts

Kovar Gold plated

Insulators Glass sintering
Hermetic Product Leakage Rate ≤1.01325×10-3Pa·cm3/s



Features

• excellent shock and vibration capability

• 35% smaller than SMP connectors

• axial and radial misalignment is allowed (blind configuration application)

• performance up to 65 GHz


Outline Drawing(mm):

Mini SMP Series Male RF Connector Pin Header PCB Mount Full Detent 4 Short Legs 0

Model Number Description
SSMP-JHD19 SSMP male full detent rf connector for PCB
SSMP-JHD19-S SSMP male smooth bore rf connector for PCB



Application:



*Network

*Satellite communication

*PC / LAN

*Base station

*Outdoor facilities

*Automobile

*Jumper insertion

*Basic facilities

*Radar, microwave

*Telecommunications

*Mobile communication

*Instrumentation

*Radio and television antenna system





NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your detai
ls.
