Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Alloy | Section Area: | 0.1-0.15mm² |
|---|---|---|---|
| Contact Spacing: | 1.27mm | Product Name: | J30J Miniaturized Rectangular |
| Contact Type: | Micro Twist Pin, Gold Plating | Termination Type: | Soder / Welding Wire |
| Pins Available: | 9,15,21,25,31,37,51,66,74,100 Pins | Locking Assembly: | L Type, Hex Head, Jackscrew |
| High Light: | 500mm D Sub Male Connector,21 Pins D Sub Male Connector,21 Pins 500mm DC Connector |
||

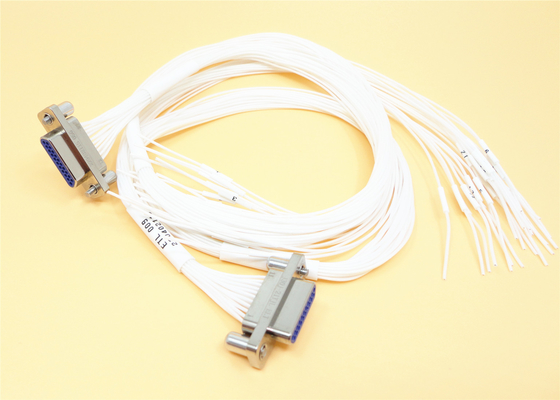

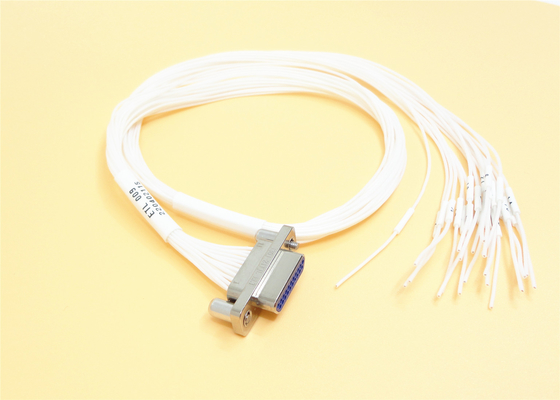

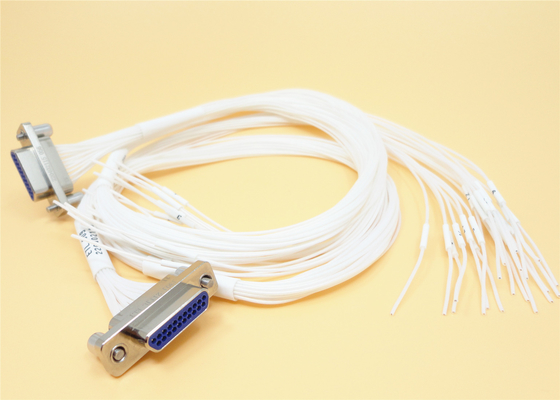

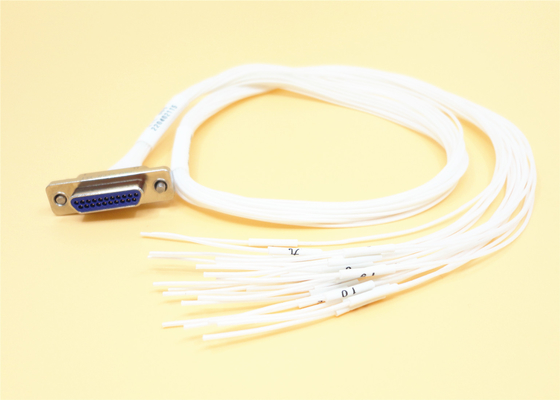

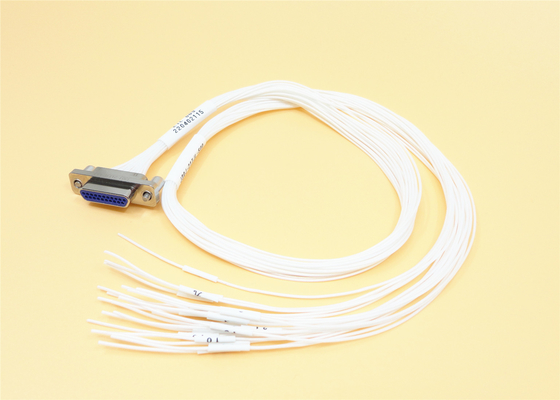

Micro D-sub Male with 21 Pins Wire Length=500mm DC Connector
This series of products is equivalent to American MDM series products, etc. the shell is aluminum alloy, the contact spacing is 1.27mm, and the applicable core cross-sectional area is 0.1-0.15mm2. The performance of this product conforms to gjb2446a (General specification for rectangular electrical connector with micro polarized housing), which is equivalent to mil-dtl-83513, and is divided into ordinary (housing) and improved (housing). It has the advantages of small installation space, light weight, reliable connection, good electromagnetic shielding, good seismic resistance and so on. It is widely used in electronic equipment and instruments with small space requirements.
The common connectors include 6 subfamilies: crimp contact connectors, solder contact connectors, in-line contact
for PCB N, in-line contact for PCB N-J, right angle contact for PCB W, right angle contact for PCB W-J.
| Current Rating | 3A |
| Voltage Rating | 300V |
| Insulation Resistance | ≥ 5000 MΩ |
| Durability | 500 cycles |
| Dielectric Withstand Voltage | 800 |
| Environmental Temperature | -55℃ ~ + 125℃ |
| Relative Humidity | up to 95% at +40℃ |
| Vibration | 10Hz~ 2000Hz 196m/S² |
| Total acceleration RMS | 23.1G |
| Impact | 735m/S² |
Applications:
- Avionics, radars
- Missiles and guidance systems
- On-board equipment
- Telecommunication systems
- Navigation systems
- Research centres
- Board to Cable
- Medical applications
- Surface Mount (SMT) Board to Cable
Features:
-0.635mm, 1.27mm, 1.91mm contact spacing
-1, 2, 3, 4-raw options,
-Twist pin, high contact density
-9-100 contacts
-Mil-dtl-83513 certification
-Save space and weight.
-Straight and right angle model selection
-Excellent shock and vibration resistance.
-Low contact resistance, high current capacity and high dielectric strength.
-Custom designed connector and cable assemblies.
-The termination method is crimping, and the grid is (row × Wire) 1.27 × 2.54.
Series:
- J30J series
- J30JM( Hermetic) series
- J30(Plastic) series
- J50J series
- J55A series
- J55AM( Hermetic) series
- J56J series
J30J-31TJL Detailed Drawing: (Unit:mm)
Locking Assembly:
NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
