Product Details:
Payment & Shipping Terms:
|
| Plating: | Gold Plated | Impedance: | 50Ω |
|---|---|---|---|
| Frequency: | DC~18GHz | Durability: | 500 Cycles |
| Insulation Resistance: | ≥5000MΩ | Rated Voltage: | 335VRMS |
| Medium Pressure: | 1000VRMS | Insulating Medium: | PTFE |
| High Light: | 21.1mm SMA Cable Connector,SFF-50-1.5-1 SMA Cable Connector,RG316 SMA Cable Connector |
||
SMA series is a miniature, high-frequency RF coaxial connector, which is developed and produced according to Mil-C-39012. It has the characteristics of small size, good bandwidth and good electrical characteristics. SMA is the most widely used RF coaxial connector in different fields of microwave communication and microwave measuring equipment. The high-performance connector developed by our company can reach 20GHz.
Electrical Specification :
| Impedance | 50Ω | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 335VRMS* | |
| Dielectrics Voltage-resistance | 1000VRMS* | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ | |
| VSWR | ≤1.3 | |
Mechanical Specification:
| Center Conductor | Male | Brass Gold plated |
| Female | Sn-P Bronze Gold plated | |
| Elastic Contact | Beryllium bronze Nickel plated | |
| Shell and other Metal Parts | Brass Nickel plated | |
| Stainless Passivation | ||
| Crimping Sleeve | Brass Nickel plated | |
| Tightening torque of connection | 0.79－1.13N .m | |
| Durability | 500 cycles | |
| Sealing Ring | Silicone Rubber | |
| Insulators | PTFE | |
Advantages:
√ rich connector selection (BNC, TNC, MCX, MMCX, SMA, SSMA, SMB, SSMB, BMA, SBMA, SMC, SC, SMP, SSMP, etc.), more than 500
Experienced workers with more than 10 production lines
√ specialized in manufacturing RF connectors for more than 16 years
√ have long-term and rich cooperation experience with parts suppliers of national projects such as Shenzhou No. 9
√ own plant 35000 ㎡
√ replace Lemo, MOLEX, Yeonho, Tyco, amp, ket, JWT, JMT, cvilux, GTK, etc. Short delivery period
√ competitive price
√ strict quality control (QA report), passed, ISO9001, ROHS, CE
√ ODM orders are welcome
√ we are committed to providing customers with high-quality products
√ average monthly turnover of 10million yuan
Features:
1. SMA RF connector is a high-quality and fast combination. Only the two connectors need to be screwed together without welding or crimping
2. SMA electrical connectors are widely used in microwave, antenna and test instruments
3. SMA RF connector is a screw coupling RF coaxial connector, which is small in size, shockproof and has a frequency range of up to 18GHz (our SMA RF connector can reach 20GHz)
4.sma RF connectors are available in quick connect, push in or standard interface, straight, 90 degree versions, and bulkhead or 4-hole panel configurations

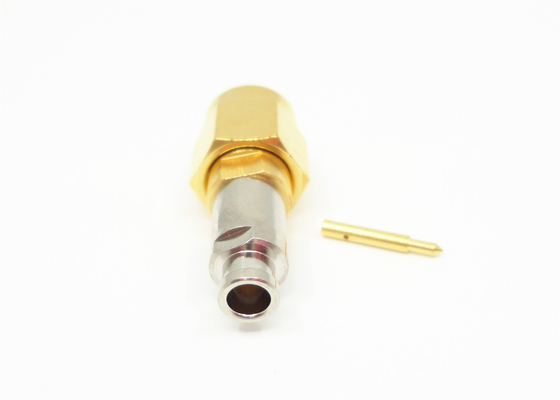

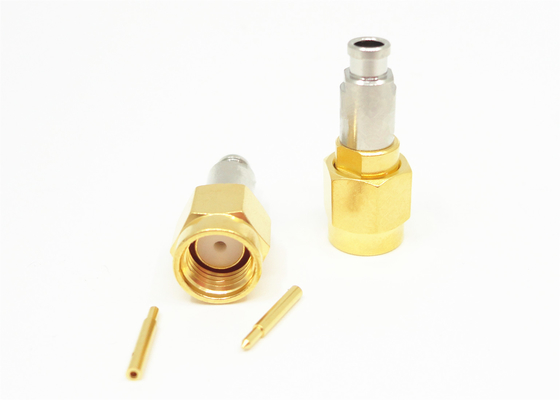

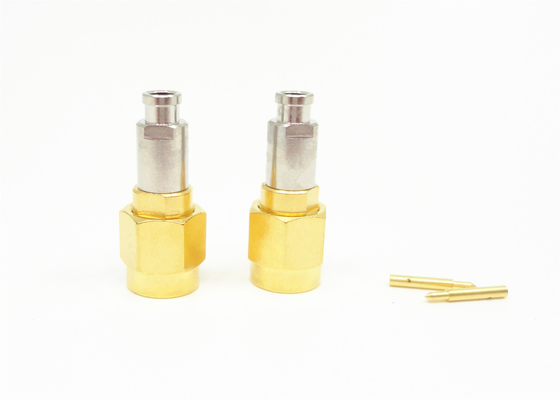

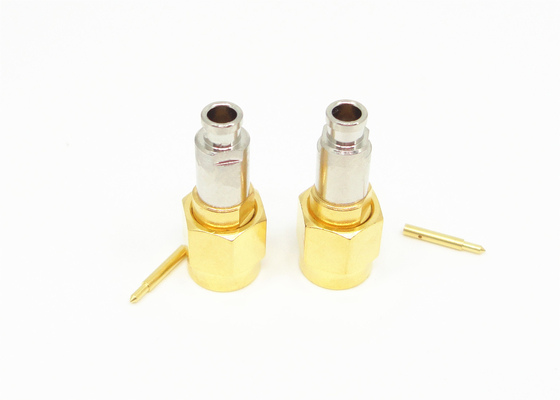

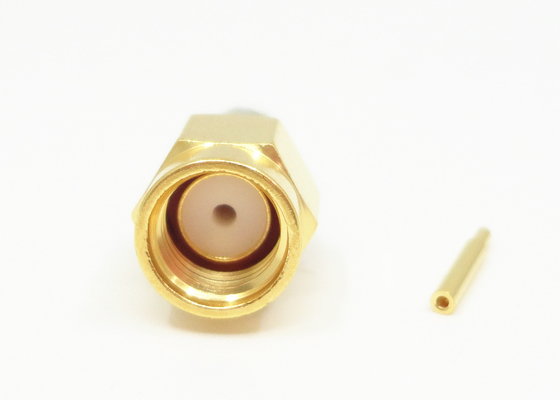

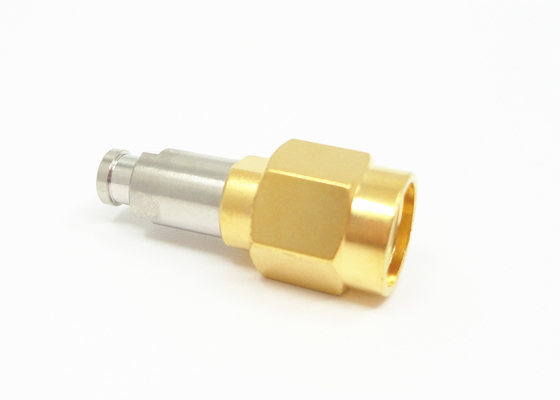

More Pictures of Female Straight SMA RF Connector Gold Plated Crimping Cable Connector:
| Model Number | Description |
| SMA-J3L | SMA male rf connector |
| SMA(S)-J3L | SMA waterproof male rf connector |
Product Cataloge:
1. RF Connectors, Adapters ( DC to 110GHz )
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated( RF & DC ) Connectors
5. Micro Rectangular Connector( J30J, Micro D-sub )
6. Glass-to-metal Hermetic Seals, Headers,Feedtru( RF & DC )
7. Microwave Rotary Joints
8. RF Loads, Terminations ( TNC, SMA, SSMA, SMP, SSMP, N, K2.92mm )
9. ODM Products
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
