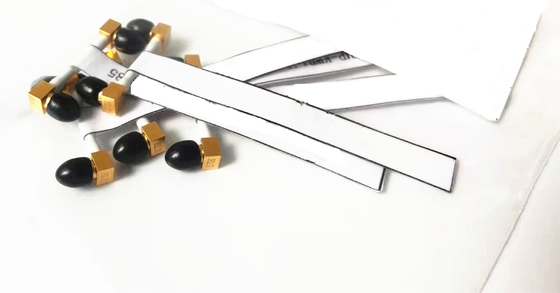

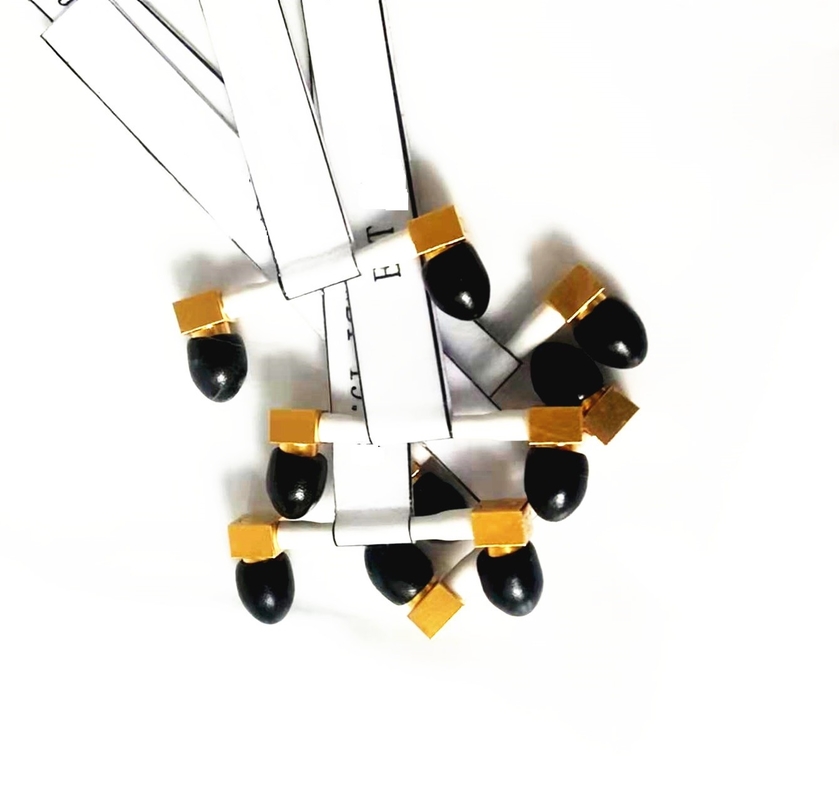

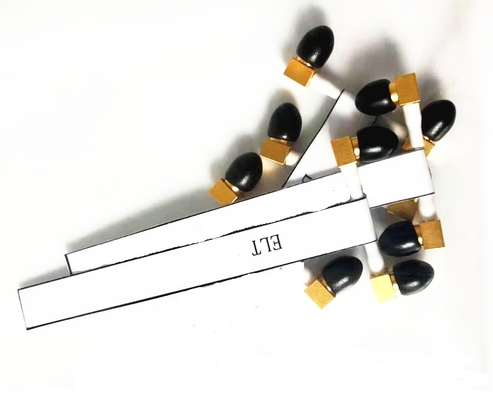

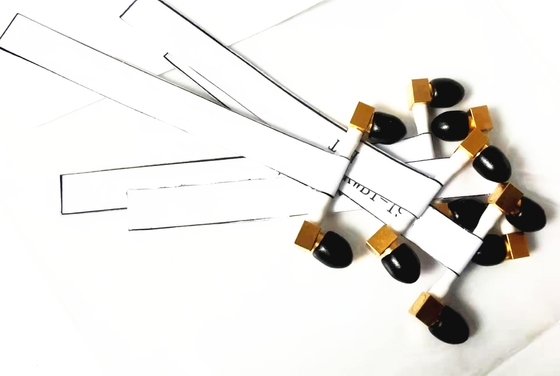

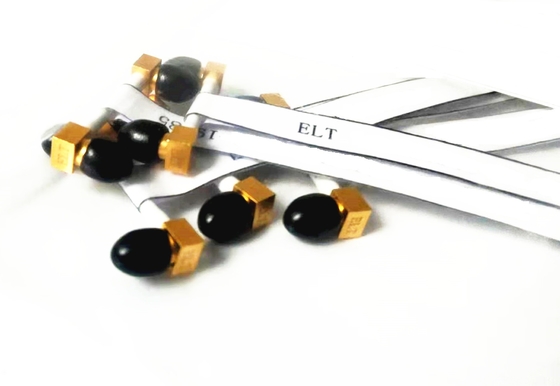

Electronic SSMP SMPM RF Cable Assemblies 58mm 15GHz

Electronic SSMP SMPM RF Cable Assemblies 58mm 15GHz
Electronic SSMP SMPM RF Cable Assemblies 58mm 15GHz Electronic SSMP SMPM RF Cable Assemblies 58mm 15GHz Electronic SSMP SMPM RF Cable Assemblies 58mm 15GHz Electronic SSMP SMPM RF Cable Assemblies 58mm 15GHz Electronic SSMP SMPM RF Cable Assemblies 58mm 15GHz

Large Image :  Electronic SSMP SMPM RF Cable Assemblies 58mm 15GHz Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: SSMP-KWB1/SSMP-KWB1-19.85
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1,000,000 pcs Per Month
Detailed Product Description
Impedance: 50Ω Certificate: CE ROHS
Cable Lenght: 58mm Frequency Range: 0.04~15GHz
Insertion Loss: ≤0.8dB Insulation Resistance: ≥5000MΩ
VSWR: ≤1.35 Brand: ELT
High Light:

SSMP SMPM RF Cable Assemblies

,

Electronic RF Cable Assemblies 58mm

,

Electronic RF Cable Assemblies 15GHz

SSMP Female to Female Right Angle RF Cable Assemblies L=19.85mm





Cable length can be customized according to customer's requirement.



In addition to our standard offering, Elite Electronic also offers a variety of customized options for these interconnect products, which include different connector options,higher and lower frequency coverage, extended environmental testing, etc. Our team of dedicated Engineers can help develop the right solution for your application needs.

Electronic SSMP SMPM RF Cable Assemblies 58mm 15GHz 0

Specifiacation:



Electrical Characteristics
Impedance 50Ω
Frequency Range Connect with solf cable DC~12.4GHz
Connect with semi-rigid cable DC~18GHz
Rated Voltage 335VRMS
Dielectrics Voltage-resistance 1000VRMS
Insulation Resistance ≥5000MΩ
Center Resistance Center Conductor ≤3.0mΩ
Outer Conductor ≤2.0mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Brass Gold plated
Female Sn-P Bronze Gold plated
Elastic Contact Beryllium bronze Nickel plated
Shell and other Metal Parts Brass Nickel plated
Stainless Passivation
Crimping Sleeve Brass Nickel plated
Insulators PTFE
Sealing Ring Silicone Rubber
Durability 500 cycles
Tightening torque of connection 0.79-1.13N .m





Application:



* Broadband
* Instrumentation
* Antennas
* Telecom

* Aerospace
* Broadband
* Instrumentation
* Phased array antennas
* Telecommunications

* Board-to-board interconnect



Features



• 0-26.5GHz
• Standard brass, non-magnetic brass and stainless steel material options
• Patented High Frequency and Self Fixture end launch connectors
• Quick connect cable plugs and adapter



Advantages:



√ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.), more than 500

experienced workers with over 10 production line

√ Specializes in manufacturing RF connector more than 16 yearS

√ Have long and Rich cooperation experience with national project components supply like China ShenZhou 9

√ With our own factory with 35,000㎡

√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery

√ Competitive price

√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE

√ Monthly average turnover is 10million

√ Custom-made (ODM) orders welcome here

√ We are committed to providing high-quality products to customers



Product Cataloge:


1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. Microwave Rotary Joints
8. RF Loads, Terminations (TNC,SMA, SSMA, SMP, SSMP, N, K2.92mm)
9. ODM Products







NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your detai
ls.
