| Out Shell: | Aluminum Alloy | Contact Pin: | 21 Pins |
|---|---|---|---|
| Material: | Metal | Contact Spacing: | 1.27mm |
| Section Area: | 0.1-0.15mm² | Standard: | MIL-DTL-83513 |
| Contact Type: | Micro Twist Pin, Gold Plating | Product Name: | J30J,Mirco-D, D-sub, MDM |
| Ceritification: | ROHS ISO-9001-2015 | Leak Rate: | ≤1.01X10^-3 Pa.cm^3/s |
| High Light: | Hermetic Socket J30J Series Connector,Aluminum Alloy J30J Series Connector,Gold Plating J30J Series Connector |
||

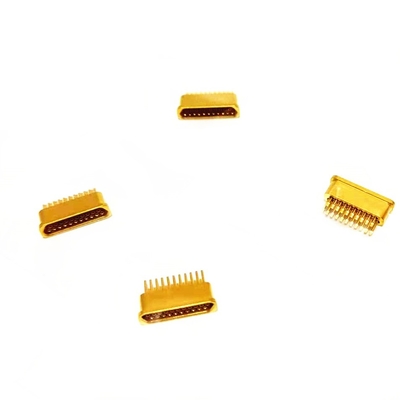

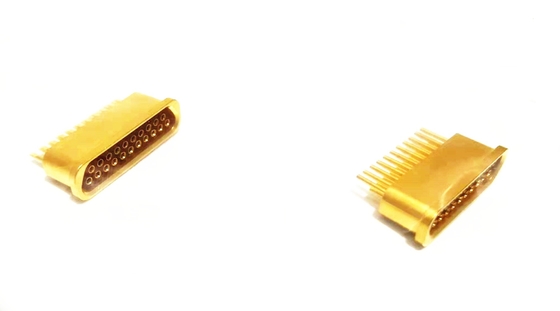

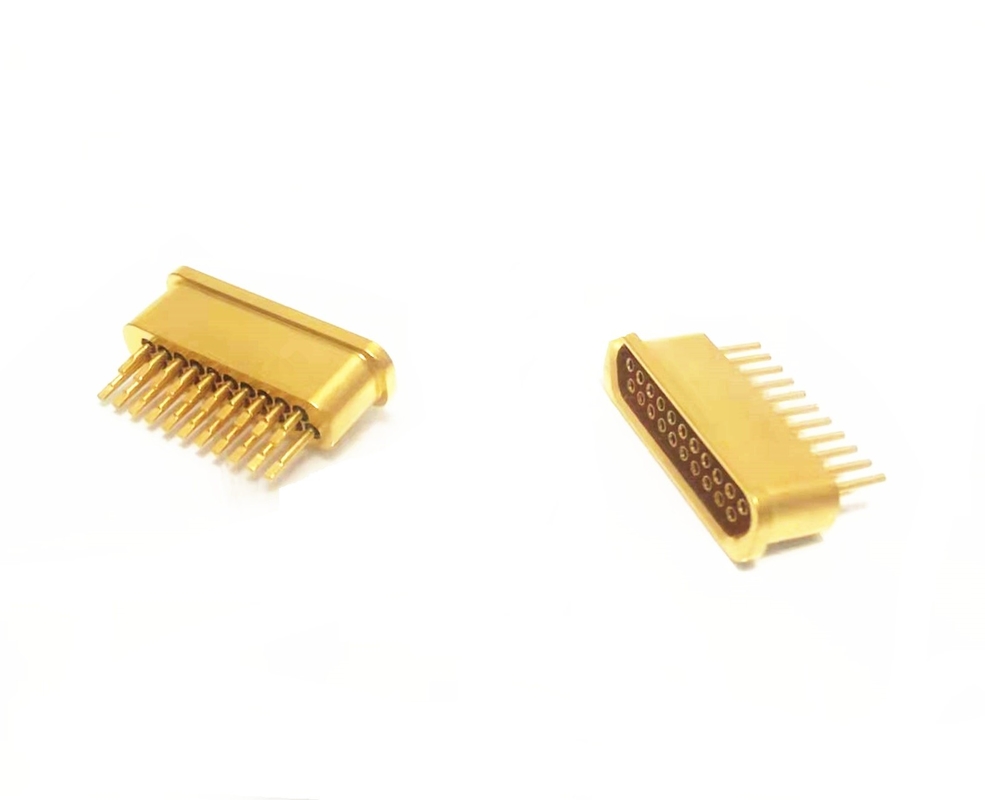

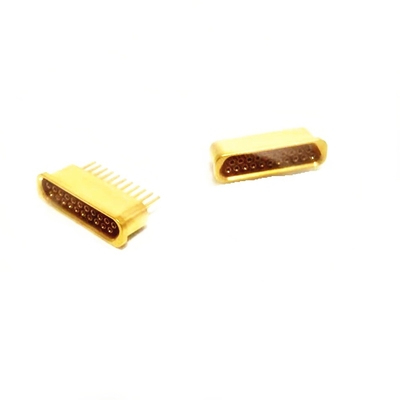

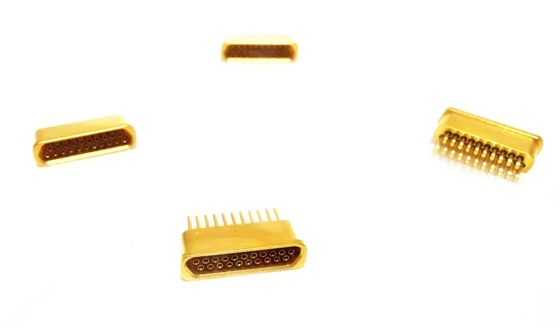

J30JM Hermiticlly D-sub Socket
J30JM miniature rectangular female connector is a sealed socket with glass dielectric and contact spacing of 1.27mm. For termination styles, they can be applied to cross-sectional areas of Φ 0.1-0.15mm2 wire, or directly welded to PCB. These connectors are designed for conditions that require sealing. It has the characteristics of small size, light weight, reliable connection, good electromagnetic shielding effect, anti vibration and anti impact.
| Contact Arrangements (Face View of Pin insert) |
| Current Rating | 3A |
| Voltage Rating | 300V |
| Insulation Resistance | ≥ 5000 MΩ |
| Durability | 500 cycles |
| Dielectric Withstand Voltage | 800 |
| Environmental Temperature | -55℃ ~ + 125℃ |
| Relative Humidity | up to 95% at +40℃ |
| Vibration | 10Hz~ 2000Hz 196m/S² |
| Total acceleration RMS | 23.1G |
| Impact | 735m/S² |
| Outer Dimension Drawing |
Features:
*Standard: equivalent mil-dtl-83513
*9, 15, 21, 25, 31, 37 nuclear series products
*The termination mode of PCB is right angle contact, and the grid is 1.27 × 2.54 (row × Line)
*Torsion needle
*Applicable cable cross-sectional area is 0.1~0.15 mm2
*Cable cross-sectional area is 0.07 mm2
*1, 2, 3, 4-raw options
*High density connection
*Straight and right angle models are available
*Low contact resistance, high current capacity and high dielectric strength.
*Custom designed connector and cable assemblies.
*Straight and right angle model selection
*Save space and weight.
- Research centres
- Military
- GPS
- UAV
- Communications
- Satcom
- Navigation systemsContact Person: Elite
