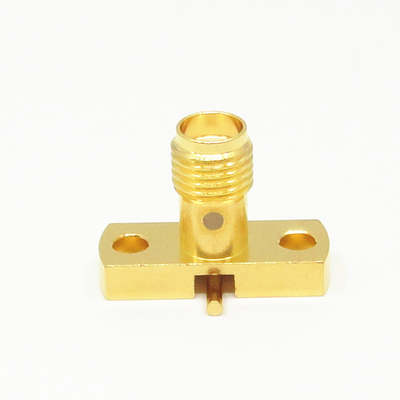

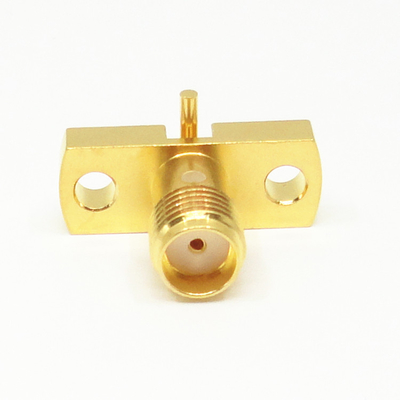

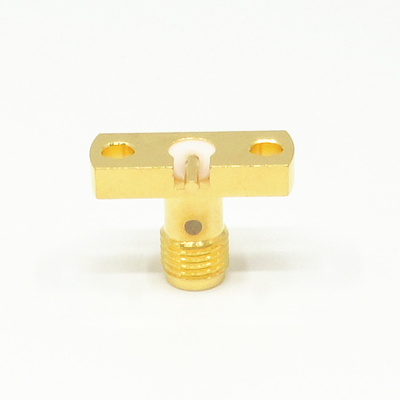

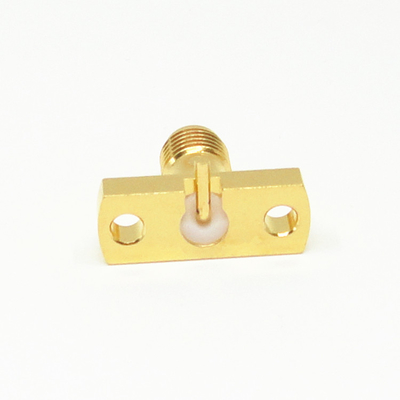

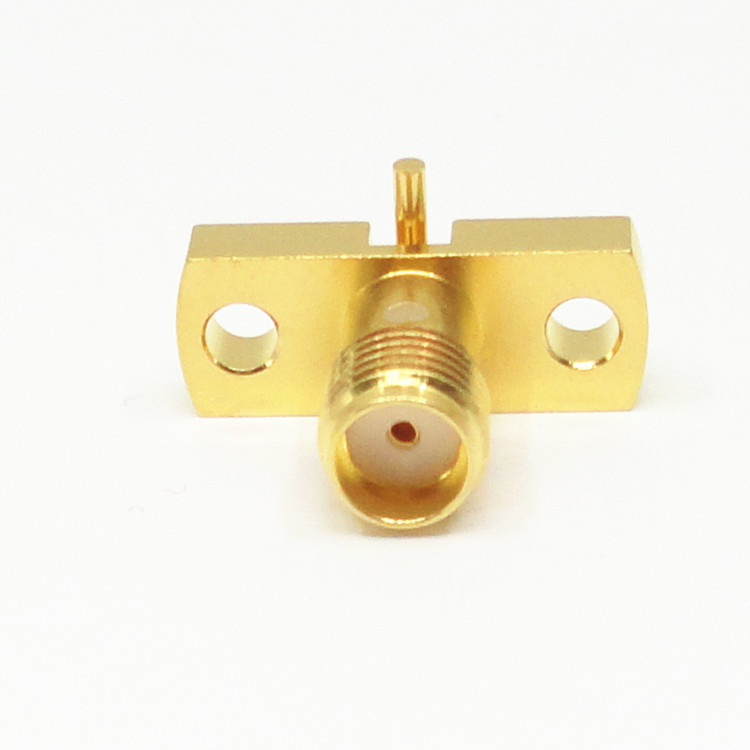

Radius Right Angle Pin SMA 2 Holes Flange Connector 50Ohm

Large Image : Radius Right Angle Pin SMA 2 Holes Flange Connector 50Ohm Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ROHS, ISO-9001-2015
Model Number:	SMA-KFDT3

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3-4 weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1,000,00 Pieces Per Month

Contact Now

Detailed Product Description

Plating:	Gold Plated	Impedance:	50Ω
Frequency:	DC~18GHz	Durability:	500 Cycles
VSWR:	≤1.3	Sealing Ring:	Silicone Rubber
Highlight:	Radius SMA 2 Hole Flange Connector , 50 Ohm SMA 2 Hole Flange Connector , 50 Ohm sma flange mount connector

50Ω 2 Holes Flange Mount RF Connector Female Gold Plated Brass

The SMA RF coaxial connector adapter is a small, high frequency coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20GHz.

Radius Right Angle Pin SMA 2 Holes Flange Connector 50Ohm 0

Specifiacation:

Electronic and Material Characterials
Impedance		50Ohm
Frequency Range		DC~18GHz
Rated Voltage		335 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance		1000VRMS (Maximum sea-level)
VSWR	Straight	≤1.3
	Right Angle	≤1.35
Insulation Resistance		≥5000MΩ
Center conductor	Male	Brass, Gold-plated
	Female	Beryllium bronze, Gold plated
Shell and other metal parts		Brass , Stainless steel, Gold-plated
Contact Resistance	Inner conductor	≤3.0MΩ
	Outer conductor	≤2.0MΩ
Elastomer		Beryllium bronze ,Nickle plated
Insulator		PTFE
Seal ring		Silicon rubber
Mating torque		0.79-1.13 N.m
Durablity		500(Cysles)

Detailed:(mm)

Radius Right Angle Pin SMA 2 Holes Flange Connector 50Ohm 1

Similar Products:

1.Gold Plated Brass 2 Holes Flange Mount Straight RF Coaxial Connector Jack

Radius Right Angle Pin SMA 2 Holes Flange Connector 50Ohm 2

Model No.	L	L1	D	D1	D2	Note
SMA-KFD193	4	1.5	0.5*0.2	4	2.2	Terminal flat side is parralled to the long side of the flange
SMA-KFD524	5	2.5	0.5*0.2	4	2.6
SMA-KFD773	4	4	φ1.3*0.2	5.2	2.2
SMA-KFD1207	3.5	5	0.5*0.2	4.1	2.6
