| Frequency Range: | DC~30GHz | Impedance: | 50Ω |
|---|---|---|---|
| Durability: | 500 Cycles | Material: | Brass Gold-plate |
| Application: | Audio/vedio/microwave | VSWR: | ≤1.3 |
| Insulation Resistance: | ≥2000MΩ | Insulating Medium: | PTFE |
| High Light: | 4 Hole Flange Mount Adapter,SSMA Flange Mount Adapter,SSMA Flange RF Coaxial Connector |
||

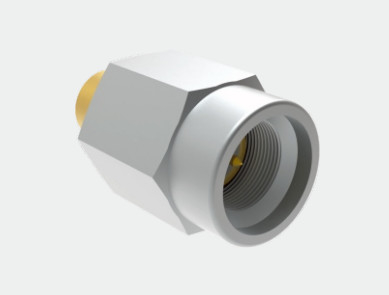

The SSMA Series RF coaxial connector is a scaled-down version of the SMA connector. Its distinguishing features include its compact size, broad frequency range, and high dependability. It has been extensively adopted in various sectors such as aviation, aerospace, and microwave communication.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electronic and Material Characterials | ||
| Impedance | 50Ω | |
| Frequency Range | DC~30GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥2000MΩ | |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated | |
| Shell and other metal parts | Brass gold plated | |
| Stainless steel passivated | ||
| Cable sheath | Brass nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.5 -0.7N.m | |
Key Features:
1. Miniaturized Size: The SSMA connector is designed to be smaller than its SMA (SubMiniature version A) counterpart, making it ideal for use in space-constrained environments.
2. Wide Frequency Range: The SSMA connector is capable of handling a broad frequency spectrum, which is essential for diverse communication systems and applications.
3. High Reliability: Engineered for stability and robustness, SSMA connectors are trusted in demanding settings such as aviation and aerospace industries.
4. Environmental Resistance: These connectors are often designed to withstand extreme temperatures, vibrations, and other environmental factors to ensure operation in harsh conditions.
Application:
1. Navigation Systems: For instance, Global Positioning System (GPS) devices may utilize SSMA connectors to maintain the connection between antennas and receivers.
2. Radar Systems: SSMA connectors can be used in radar setups to connect transmit and receive modules for high-frequency signals.
3. Medical Devices: Some high-frequency medical equipment, such as electrosurgical units and RF therapy devices, may use SSMA connectors for signal connectivity.
Product Cataloge:
| RF Adapter |
| SMA RF Connector |
| SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |

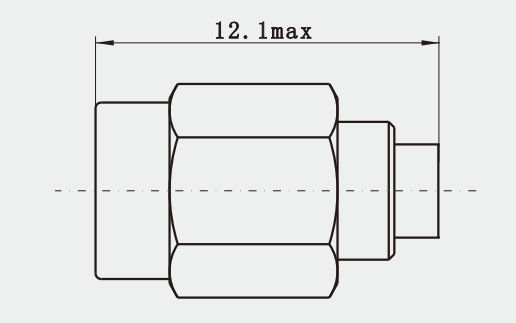

Interface Dimentions:
Related Product
1.Mini SMA Microstrip series 2 Holes Flange Connectors
2.SMA Female RF Connectors for cable RG178
2.Mini SMA PCB Panel Mount 4 Holes Flange Connectors
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
