High Performance Mixed Integrated Connector High & Low Frequency

High Performance Mixed Integrated Connector High & Low Frequency
High Performance Mixed Integrated Connector High & Low Frequency High Performance Mixed Integrated Connector High & Low Frequency High Performance Mixed Integrated Connector High & Low Frequency

Large Image :  High Performance Mixed Integrated Connector High & Low Frequency Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT
Certification: CE ROHS
Model Number: ELT-J32P -T4GJ8D~J32P-Z4GK8D
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10,000pcs Per Month
Detailed Product Description
Product: Integrated Connector Certificate: CE ROHS
Conductor: Copper Alloy/Gold-plated VSWR: ≤1.3
Application: Array Surveillance Radar System Temperature Range: -55°C~+125°C
Insulating Medium: PTFE Impedance: 50Ω
Shell: Aluminum Alloy/Nickel Plating Insulation Resistance: 5000MΩ
High Light:

Integrated Connector Low Frequency

,

Integrated Connector high Frequency

,

Low Frequency Integrated Connector Module

High Density DC and Control Signals and RF signals Integrated Connector



Integrated connectors are miniaturized, lightweight connectors designed to achieve simultaneous transmission of multichannel signals. They are applicable to multi-signal transmission occasions where the space is limited, so the weight and environment characteristics of connectors are critical.

Our integrated connectors can be classified into RF integrated connectors and high & low frequency hybrid integrated connectors. Our integrated connectors are push-on screw-threaded coupling with metal outer conductor. Interfaces of our RF integrated connectors comply with GJB5246; Interfaces of our hybrid integrated connectors can be customized.

Integrated connectors are designed with compact size, keying for incorrect connections, reliable contact, shock resistance, anti-vibration, salt-spray resistance, high performance at high frequency, etc.



Specification
Frequency Range  0.04GHz-18GHz
High Frequency   4 pins
Low Frequency   8 pins
VSWR ≤1.3
Voltage Resistance 500V
Custom Size Available
Cable for RF CXN3507
Cable for Low  AFR-250  2.5mm²
Rated Current  10A



Related Product List

J23SM Series
J44P Series
J41B Series
J45P Series
J51M Series
J63M Series
J76P Series



Detailed Drawing

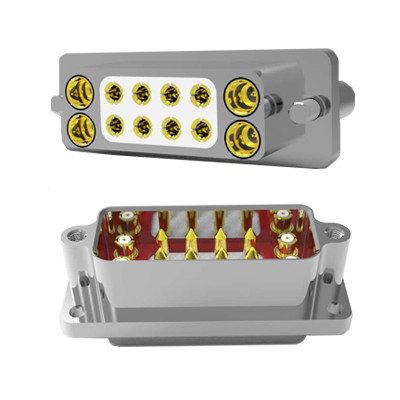

High Performance Mixed Integrated Connector High & Low Frequency 0

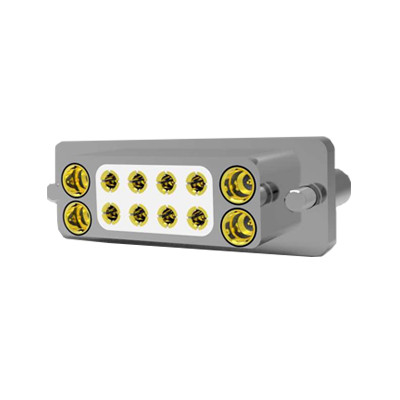

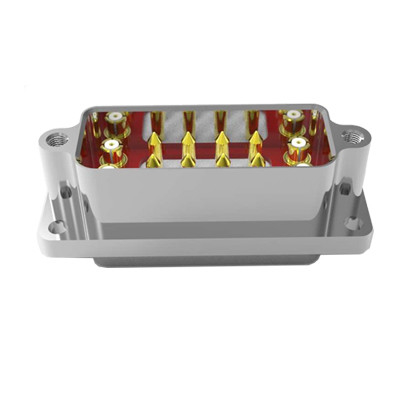

High Performance Mixed Integrated Connector High & Low Frequency 1High Performance Mixed Integrated Connector High & Low Frequency 2
