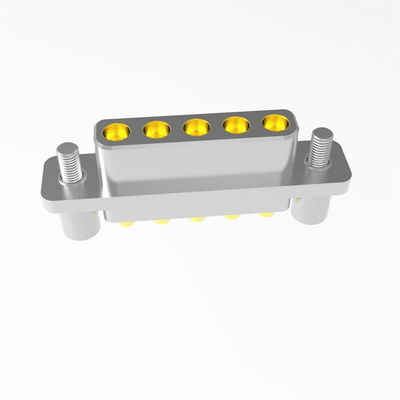

Hi-Rel High Density SMA/SMP/N RF 5 Position Integrated Connector For Cable

Hi-Rel High Density SMA/SMP/N RF 5 Position Integrated Connector For Cable
Hi-Rel High Density SMA/SMP/N RF 5 Position Integrated Connector For Cable Hi-Rel High Density SMA/SMP/N RF 5 Position Integrated Connector For Cable Hi-Rel High Density SMA/SMP/N RF 5 Position Integrated Connector For Cable

Large Image :  Hi-Rel High Density SMA/SMP/N RF 5 Position Integrated Connector For Cable Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT
Certification: CE ROHS
Model Number: ELT-J28P-T5GJ~J28P-Z5GK
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10,000pcs Per Month
Detailed Product Description
Product: Integrated Connector RF Leakage: Low
Certificate: CE ROHS Material: Zinc Alloy / Brass/Metal
VSWR: ≤1.3 Application: Aerospace、Defense 、high Speed Cable And Constricted Space
Pins: 5 Recommanded Cable: CXN3506
High Light:

RF 5 Position Integrated Connector

,

SMA 5 Position Integrated Connector

,

SMP 5 Position Integrated Connector

Salt-spray Resistance/Moisture-resistance RF Integrated Connector



Integrated connectors are miniaturized, lightweight connectors designed to achieve simultaneous transmission of multichannel signals. They are applicable to multi-signal transmission occasions where the space is limited, so the weight and environment characteristics of connectors are critical.

Our integrated connectors can be classified into RF integrated connectors and high & low frequency hybrid integrated connectors. Our integrated connectors are push-on screw-threaded coupling with metal outer conductor. Interfaces of our RF integrated connectors comply with GJB5246; Interfaces of our hybrid integrated connectors can be customized.

Integrated connectors are designed with compact size, keying for incorrect connections, reliable contact, shock resistance, anti-vibration, salt-spray resistance, high performance at high frequency, etc.



Specification
Frequency Range  0.04GHz-40Ghz
High Frequency  5 pins
VSWR ≤1.3
Cable Type CXN3506
Voltage Resistance 500V
Insulation Resistance ≥5000MΩ
Custom Size Available
Cable Flexible Cable



Product List

J23SM Series
J44P Series
J41B Series
J45P Series
J51M Series
J63M Series
J76P Series



Detailed Drawing
Hi-Rel High Density SMA/SMP/N RF 5 Position Integrated Connector For Cable 0

Hi-Rel High Density SMA/SMP/N RF 5 Position Integrated Connector For Cable 1Hi-Rel High Density SMA/SMP/N RF 5 Position Integrated Connector For Cable 2
