| Product: | Integrated Connector | RF Leakage: | Low |
|---|---|---|---|
| Certificate: | CE ROHS | Material: | Zinc Alloy / Brass/Metal |
| VSWR: | ≤1.3 | Application: | Array Surveillance Radar System |
| Pins: | 10 | Recommanded Cable: | CXN3506 |
| High Light: | Integrated RF Connector,High Frequency RF Connector,Integrated high frequency connector |
||

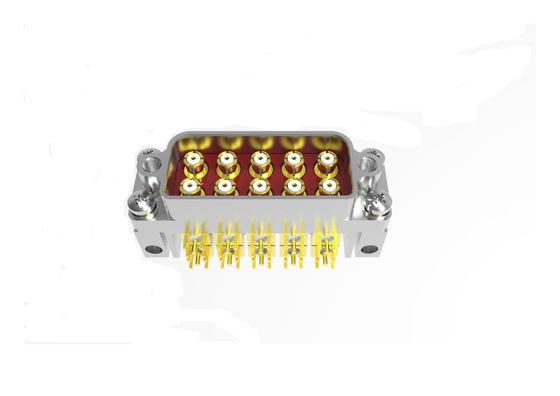

Salt-spray Resistance/Moisture-resistance RF Integrated Connector
Integrated connectors are miniaturized, lightweight connectors designed to achieve simultaneous transmission of multichannel signals. They are applicable to multi-signal transmission occasions where the space is limited, so the weight and environment characteristics of connectors are critical.
Our integrated connectors can be classified into RF integrated connectors and high & low frequency hybrid integrated connectors. Our integrated connectors are push-on screw-threaded coupling with metal outer conductor. Interfaces of our RF integrated connectors comply with GJB5246; Interfaces of our hybrid integrated connectors can be customized.
Integrated connectors are designed with compact size, keying for incorrect connections, reliable contact, shock resistance, anti-vibration, salt-spray resistance, high performance at high frequency, etc.
| Frequency Range | 0.04GHz-18GHz |
| High Frequency | 10 pins |
| VSWR | ≤1.3 |
| Cable Type | CXN3506 |
| Voltage Resistance | 500V |
| Insulation Resistance | 5000MΩ |
| Custom Size | Available |
| Cable | Flexible Cable |
Product List
| J23SM Series |
| J44P Series |
| J41B Series |
| J45P Series |
| J51M Series |
| J63M Series |
| J76P Series |
Detailed Drawing
