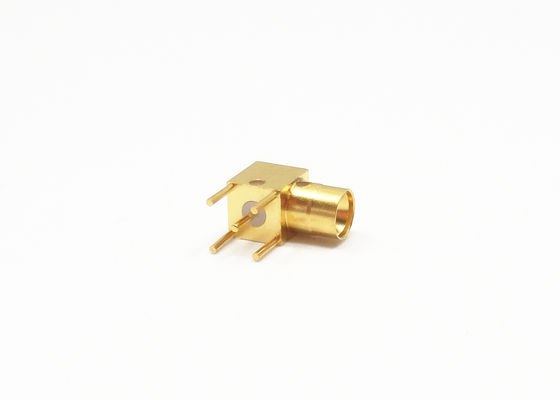

Product Name: SSMP Connector, SMPM, Mini SMP Gender: Male
Material: Brass Plating: Gold Plated
Impedance: 50Ω Frequency Range: DC~50GHz
Model: SSMP-JWHD34 Other Names: Mini SMP, SMPM
Body Style: Right Angle
High Light:

50ohm SSMP RF Connector

,

Right Angle SSMP RF Connector

,

50ohm smpm adapter

SSMP RF Connector SMPM Male Plug Right Angle RF Connector



Features

1, SMPM (SSMP) is a sub-miniature, push-on style micro-interfaces connector.



2, The size is 35% smaller than the SMP design.



3, SMPM series includes PC-mount, straight and right-angled, .047 cabled connectors and sealable flange-mounts.



4, All male connectors are offered as full-detent or smooth bore designs for your preference of separation forces.





SMPM is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting and the plug has two interface form with full detent and unthreaded hole.




Specification:

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~50GHz
Rated Voltage 170VRMS*
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor Normal≤3.5mΩ, Sealing≤5mΩ
Center conductor Normal≤8mΩ,    Sealing≤30mΩ
  DC~18GHz 18~26.5GHz 26.5~40GHz 40~50GHz
VSWR ≤1.25 ≤1.3 ≤1.4 ≤1.5



Material & Mechanical Characteristics:



Center Conductor:

Male: Sn-P Bronze/Kovar, Gold plated

Female: Beryllium bronze, Gold plated


Elastic Contact:Beryllium bronze Gold plated

Body and other Metal Parts: Brass/Kovar Gold plated



Product Drawing:

50Ohm SSMP RF Connector SMPM Male Plug Right Angle RF Connector 0









Application:



* Automotive

* Jump line join

* Basic facility

* Radar,microwave

* Computer/LANs

* Network

* Satcom





Advantages:

50Ohm SSMP RF Connector SMPM Male Plug Right Angle RF Connector 1



√ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.), more than 500 experienced workers with over 10 production line
√ Specializes in manufacturing RF connector more than 20years
√ Have long and rich cooperation experience with national project components supply
√ With our own factory with 35,000㎡
√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery
√ Competitive price
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ Monthly average turnover is 10million
√ Custom-made (ODM) orders welcome here
