Product Details:
Payment & Shipping Terms:
|

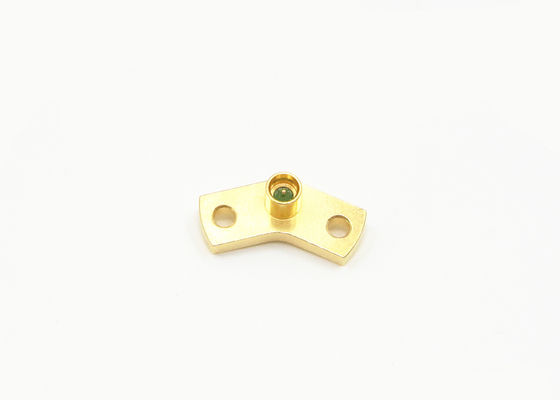

| Product Name: | SSMP Connector | Gender: | Male |
|---|---|---|---|
| Plating: | Gold Plated | Impedance: | 50Ω |
| Frequency Range: | DC~50GHz | Rated Voltage: | 170VRMS* |
| Material: | Brass | ||
| High Light: | Male Coaxial SSMP Connector,2 Hole SSMP Connector,2 Hole smpm connector |
||
SMPM is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting,and the plug has two interface form with full detent and unthreaded hole.
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male | Sn-P Bronze/Kovar, Gold plated | |||
| Female | Beryllium bronze, Gold plated | ||||
| Elastic Contact | Beryllium bronze Gold plated | ||||
| Shell and other Metal Parts |
Brass/Kovar Gold plated Stainless steel Passivation |
||||
| Insulators | Glass sintering/PTFE/PEI | ||||
| Hermetic Product Leakage Rate | ≤1.01325×10-3Pa·cm3/s | ||||
Application:
* Network
* Satcom
* Automotive
* Jump line join
* Basic facility
* Radar,microwave
* Computer/LANs
* Base Station
* Outdoor facilities
* Instrumentation
* Telecommunications
* Mobile communication
* Radio, TV aerial system
Factory& Production Line:
NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
