Product Name: | SMA RF Coaxial Conector | Certificate: | CE ROHS ISO-9001-2015 |
---|---|---|---|
Life Span: | 500 Cycles | Gender: | Female/Socket |
Body Type: | Straight | Material: | Stainless Steel |
Mount Method: | Bulkhead Mount | Plating: | Passivated |
Imdepence: | 50Ohm | ||
Highlight: | Sus End Launch SMA Connector,Female Bulkhead End Launch SMA Connector,Sus end launch connector |

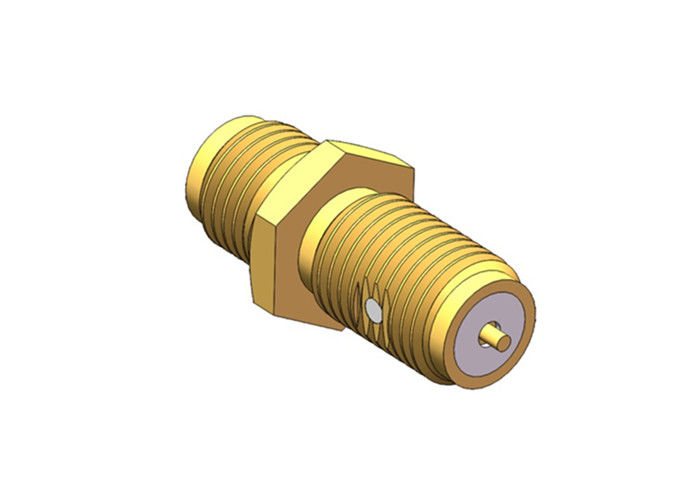

Stainless Steel Female Bulkhead End Launch SMA Connector
1. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
2. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
3. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz.
4. SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions,as well as bulkhead, or 4 holes panel configurations.
Frequency range up to 18GHz sub-miniature coaxial connectors
Using a threaded interface
Available in passivation or gold plating
Brass and stainless steel material options
Wide variety of orientations and PCB terminations
Available in straight or right angle versions
With bulkhead, 2 holes panel, 4 holes panel or mountless options.
Broad range with male, female and adapters variants.
RoHS compliant
Electronic and Material Characterials | ||
Impedance | 50Ohm | |
Frequency Range | DC~18GHz | |
Rated Voltage | 335 VRMS (Maximum sea-level) | |
Dielectrics Voltage-resistance | 1000 VRMS (Maximum sea-level) | |
VSWR | ≤1.3 | |
Insulation Resistance | ≥5000MΩ | |
Center conductor | Male | Brass gold plated |
Female | Beryllium copper gold plated | |
Shell and other metal parts | Brass gold plated | |
Cable sheath | Brass nickle plated | |
Insulator | PTFE | |
Seal ring | Silicon rubber | |
Mating torque | 0.79 -1.13 N.m |
Applications
RF Cable Assemblies |
Waveguide to Coaxial Adapter |
Glass-to-metal Hermetic Seals |
J30J Series Connector |
Microwave Rotary Joints |
RF Adapter |
SMA/SSMA RF Connector |
SMP/SSMP RF Connector |
N Type RF Connector |
TNC RF Connector |
MCX/MMCX RF Connector |
BNC RF Connector |
Millimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
