| Product Name: | SMA RF Coaxial Conector | Plating: | Gold Plated |
|---|---|---|---|
| Impedance: | 50Ω | Frequency: | DC~18GHz |
| Durability: | 500 Cycles | Application: | RF, Satcom /antenna/Audio |
| Material: | Brass | Certificate: | ROHS, ISO-9001-2015 |
| High Light: | 50Ohm RF Female Connector,2 Hole RF Female Connector,50Ohm sma female adapter |
||
High Performance SMA RF Connectors:
1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 holes panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz).
Key Features of SMA RF Connectors:
| Frequency range up to 18GHz Sub-miniature coaxial connectors |
| Using a threaded interface |
| Available in passivation or gold plating |
| Brass and stainless steel material options |
| Wide variety of orientations and PCB terminations |
| Available in straight or right angle versions |
| With bulkhead, 2 holes panel, 4 holes panel or mountless options. |
| Broad range with male, female and adapters variants. |
| RoHS compliant |
Specifiacation:
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.2(DC-6GHz) |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |
More Detail of

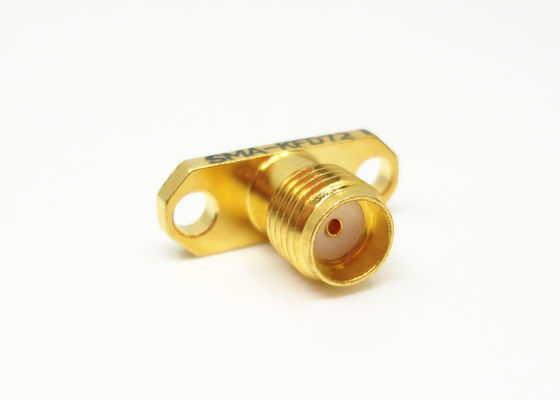

SMA Female 2 Holes Flange Mount RF Coaxial Connectors :
(Unit:mm)
Applications:
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
