Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMA Female To SSMA Female Adapter | Impedance: | 50Ω |
|---|---|---|---|
| Dielectric: | PTFE | Type: | RF Adaptor |
| Application: | RF | Gender: | Female To Female |
| Material: | Gold Plated | Lifespan: | 500 Circles |
| High Light: | SMA to SSMA Female RF Adapter,Gold Plated RF Adapter,50 Ohm SSMA Adapter |
||

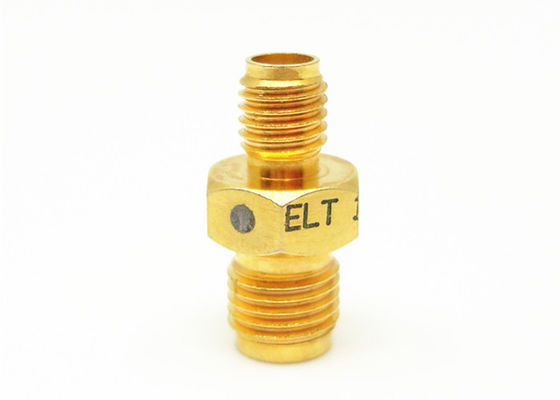

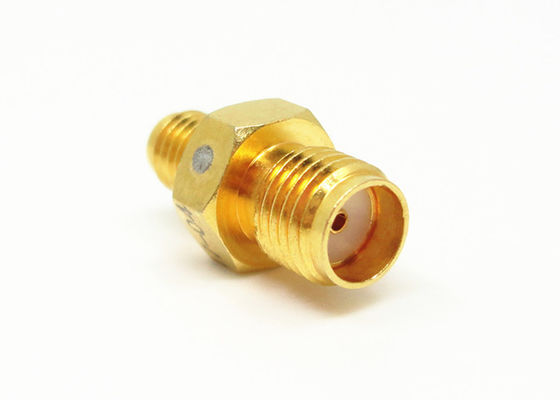

50Ohm Gold Plated Straight SMA Female to SSMA Female RF Adapter
The SMA RF coaxial connector is a small, high frequency coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20GHz.
SSMA RF Connector
SSMA Series RF coaxial connector is a kind of small, high frequency and high reliable coaxial connector, so it is widely used in avaition, aerospace and microwave communication.
As manufacturer, we can customize SMA connectors and adapters as per your different requirement. Orientations in straight and right angle, with 2-hole or 4-hole flange or threaded bulkhead, hermetic and waterproof types are all available upon request.
Outline Drawing and Picture(mm)
Electrical Characteristics of SMA RF Adapter
| Impedance | 50Ω |
| Frequency Range | DC - 18GHz |
| Voltage Rating | 335VRMS (Max. Sea Level) |
| Dielectric Withstand Voltage | 1000 VRMS (Max. Sea Level) |
|
VSWR (Voltage Standing Wave Ratio) |
≤ 1.3 |
| Contact Resistance |
Center Conductor ≤ 3.0 mΩ Outer Conductor ≤ 2.0 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
Other SMA Male Female to D4/SMP/MCX Male Female RF Adapter
|
Part Number
|
Description
|
|
SMA/SSMA-JJ |
SMA male to SSMA male adapter
|
|
SMA/SSMP-KK
|
SMA female to SSMP female adapter
|
|
SMA/MCX-KFK
|
SMA female to MCX female adapter
|
|
SMA/SMP-KFK14
|
SMA female to SMP female adapter
|
|
SMA/MCX-KWJ |
SMA female to MCX male adapter
|
|
SMA/SMP-KFK36G
|
SMA female to SMP female adapter
|
1.
2.
3.
4.
5.
6.
Application:
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
| Basic facility | Radio, TV aerial system |
Workshop & Exibition
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
