PTFE Female to Female MCX to MMCX RF Adapter

PTFE Female to Female MCX to MMCX RF Adapter
PTFE Female to Female MCX to MMCX RF Adapter PTFE Female to Female MCX to MMCX RF Adapter

Large Image :  PTFE Female to Female MCX to MMCX RF Adapter Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: ROHS ISO-9001-2015
Model Number: MCX-MMCX-KYK1
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: within 3 weeks
Payment Terms: T/T, L/C
Supply Ability: 1,000,000pcs per week
Detailed Product Description
Product Name: MCX Female To MMCX Female RF Coaxial Adapter Impedance: 50Ω
Dielectric: PTFE Type: RF Adaptor
Application: RF Gender: Female To Female
Material: Brass Color: Gold
Highlight:

MCX To MMCX RF Adapter

,

Female To Female RF Adapter

,

MCX To MMCX Adapter

Bulkhead Mount MCX Female to MMCX Female RF Connector Adapter



MCX series RF coaxial connector is apply to the equipment which have the requirement of weight and volume, the operation frequency can reach 6GHz, use plug-in design, the interface size is similar with SMB, but the volume is approximately 30% smaller, contact is more reliable, connect is faster, which can meet the requirement of digital communication intensively and miniaturized.



MMCX series is a kind of micro insertion stop RF coaxial connector which is smaller than MCX, widely used in the small communication devices and network devices that strict requirements for volume and weight. Applications of the MMCX connectors are those where size, weight, performance and ease of assembly are the driving considerations to the final design decision. Typically, these include GPS, wireless communications (WLAN and mobile) and automotive.

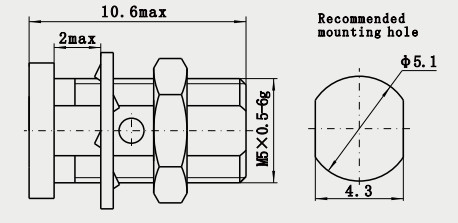

Outline Drawing and Picture(mm)

PTFE Female to Female MCX to MMCX RF Adapter 0



Related Products



1.

PTFE Female to Female MCX to MMCX RF Adapter 1

Mode No. Description
BNC/SMA-KK BNC male to SMA male adapter



2.

PTFE Female to Female MCX to MMCX RF Adapter 2

Model No. Description
K/SMP-KFK5 K female to SMP female adapter



3.

PTFE Female to Female MCX to MMCX RF Adapter 3

Model No. Description
SMA/BMA-KFK11 SMA Female to BMA female adapter



4.

PTFE Female to Female MCX to MMCX RF Adapter 4

Model No. Description
K/SMP-KFK2G stainless steel



5.

PTFE Female to Female MCX to MMCX RF Adapter 5

Model No. L1 L2 L3 D1 D2 Note
SMA/SMP-KFK14 2.9 9.3 6 12.8 2.2
SMA/SMP-KFK26 2.8 8.6 6 11.8 1.9
SMA/SMP-KFK29 2.9 9.4 5.5 13.8 2.2



Application:

Network Satcom
Computer/LANs Computer/LANs
Mobile communication Instrumentation
Base Station Mobile communication
Outdoor facilities Radar,microwave
Telecommunications Instrumentation
Automotive Jump line join
Basic facility Radio, TV aerial system



Workshop & Exibition

PTFE Female to Female MCX to MMCX RF Adapter 6

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your detai
ls.
