Product Details:
Payment & Shipping Terms:
|
| Product Name: | K Male To SSMP Female Coax Connector Adapter | Impedance: | 50Ω |
|---|---|---|---|
| Dielectric: | PTFE | Type: | RF Adaptor |
| Application: | RF | Gender: | Male To Female |
| Material: | Stainless Steel | Color: | Silvery |
| Durability: | 500 Cycles | Body Style: | Straight |
| High Light: | K To SSMP RF Adapter,50Ω Male To Female Adapter,Stainless Steel RF Adapter |
||
Stainless Steel K Male to SSMP Female Coax Connector Adapter
K type, also known as 2.92 type connectors, this series of products is a common millimeter wave connector, using frequency up to 40GHz, can be butt and interchangeable with SMA series, 3.5 series products, using air interface, with small volume, light weight, high frequency of use, reliable connection and other advantages.
Mini SMP connector is also called SMPM, SSMP connector. It's a miniature push-on RF coaxial connector, which have the characters of small volume (compared with SMP), light weight, wide working broadband, etc. Apply for the couple usage of board to board connectors, for the situation of modular intensive mounting, and the plug has two interface form with full detent and smooth bore.

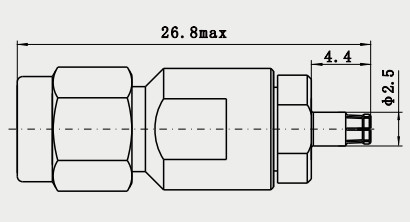

Outline Drawing and Picture(mm)
| Model No. | Note |
| K/SSMP-JK4G | Stainless Steel |
Related Products
1.
| Mode No. | Description |
| SMA/SBMA-KFK9G | Axial float 1.5max |
2.
| Model No. | Description |
| K/SMP-KFK5 | K female to SMP female adapter |
3.
| Model No. | Description |
| SMA/BMA-KFK11 | SMA Female to BMA female adapter |
4.
| Model No. | Description |
| K/SMP-KFK2G | stainless steel |
5.
| Model No. | L1 | L2 | L3 | D1 | D2 | Note |
| SMA/SMP-KFK14 | 2.9 | 9.3 | 6 | 12.8 | 2.2 | |
| SMA/SMP-KFK26 | 2.8 | 8.6 | 6 | 11.8 | 1.9 | |
| SMA/SMP-KFK29 | 2.9 | 9.4 | 5.5 | 13.8 | 2.2 |
Application:
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
| Basic facility | Radio, TV aerial system |
Workshop & Exibition
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
