SMA Female to Quick Insert SSMA Male RF Adapter

SMA Female to Quick Insert SSMA Male RF Adapter
SMA Female to Quick Insert SSMA Male RF Adapter SMA Female to Quick Insert SSMA Male RF Adapter

Large Image :  SMA Female to Quick Insert SSMA Male RF Adapter Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: ROHS ISO-9001-2015
Model Number: SMA/SOSSMA-KJ
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: within 3 weeks
Payment Terms: T/T, L/C
Supply Ability: 1,000,000pcs per week
Detailed Product Description
Product Name: SMA Female To SOSSMA Male RF Coaxial Adapter Plating: Gold Plated
Impedance: 50Ω Dielectric: PTFE
Type: RF Adaptor Application: RF
Gender: Female To Male Material: Brass
High Light:

SSMA Male RF Adapter

,

SMA Female To Quick Insert Adapter

,

SMA to SOSSMA RF Adapter

SMA Female to Quick Insert SSMA Male RF Adapter Connector



SMA connectors are small, high frequency RF coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 GHz.



SSMA series RF coaxial connectors are miniaturized products of SMA connectors, which have the characteristics of small size, wide frequency bandwidth and high reliability. It is widely used in aviation, microwave communications and other fields.

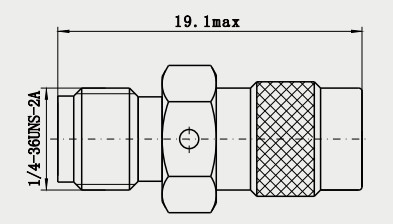

Outline Drawing and Picture(mm)

SMA Female to Quick Insert SSMA Male RF Adapter 0

Other Adapter:



1.

SMA Female to Quick Insert SSMA Male RF Adapter 1

Mode No. Description
SSMA/SMB-KK SSMA Female to SMB Female adapter



2.

SMA Female to Quick Insert SSMA Male RF Adapter 2

Model No. Description
SMA/SMP-KFK1 SMA female to SMP female adapter



3.

SMA Female to Quick Insert SSMA Male RF Adapter 3

Model No. Description
SMA/MCX-JK SMA male to MCX female adapter



4.

SMA Female to Quick Insert SSMA Male RF Adapter 4

Model No. Description
SMA/MCX-KWJ SMA female to MCX male right angle adapter



5.

SMA Female to Quick Insert SSMA Male RF Adapter 5

Model No. Description
K/SMP-JJ2 K male to SMP male adapter



Application:



* Network

* Satcom

* Computer/LANs

* Mobile communication

* Instrumentation

* Base Station

* Outdoor facilities

* Radar,microwave

* Telecommunications

* Instrumentation

* Automotive

* Jump line join

* Basic facility

* Radio, TV aerial system



NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your detai
ls.



SMA Female to Quick Insert SSMA Male RF Adapter 6
