Product Details:
Payment & Shipping Terms:
|
| Plating: | Gold Plated | Frequency: | DC~18GHz |
|---|---|---|---|
| Connector Gender: | Female | Lifetime: | 500 Cycles |
| Application: | Audio/vedio/microwave | Working Voltage: | 335V R.m.s At Sea Level |
| Type: | SMA Rf Connectors | Body Style: | Straight |
| Highlight: | 50 Ohm Sma Female Connector,Flange Mounting Sma Female Connector,Flange Mounting RF Coaxial Connector |
||

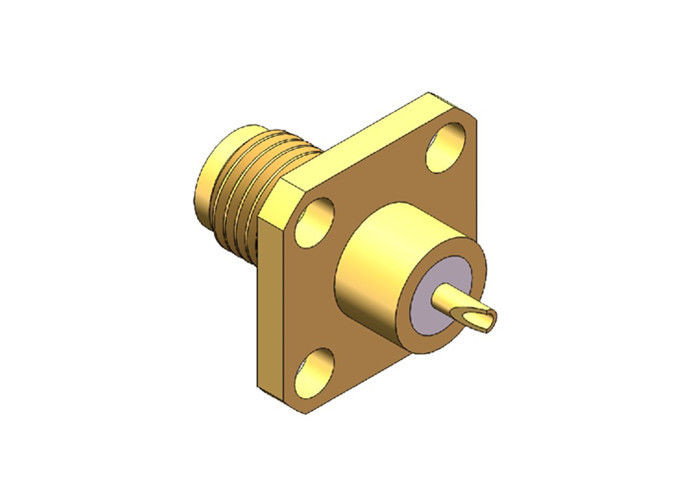

SMA series is a kind of mini, high-frequency RF coaxial connector.its developed and produced according to MIL-C-39012 by Xi'an Elite Electronic Industrial Co., Ltd. With characteristics of small volume,good bandwidth, superior electrical characteristics.
SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.

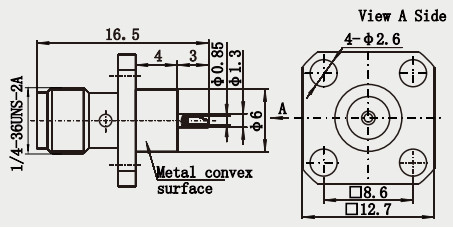

Outline Drawing:(mm)
Electrical Characteristics:
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | Connect with solf cable DC~12.4GHz | |
| Connect with semi-rigid cable DC~18GHz | ||
| Rated Voltage | 335VRMS* | |
| Dielectrics Voltage-resistance | 1000VRMS* | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Center Conductor | ≤3.0mΩ |
| Outer Conductor | ≤2.0mΩ | |
| VSWR | ≤1.3 | |
Material & Mechanical Characteristics:
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass Gold plated |
| Female | Sn-P Bronze Gold plated | |
| Elastic Contact | Beryllium bronze Nickel plated | |
| Shell and other Metal Parts | Brass Nickel plated | |
| Stainless Passivation | ||
| Crimping Sleeve | Brass Nickel plated | |
| Tightening torque of connection | 0.79－1.13N .m | |
| Durability | 500 cycles | |
| Sealing Ring | Silicone Rubber | |
| Insulators | PTFE | |
Features:
Applications
Related Products:
| Model No. | L | L1 | L2 | D | Note |
| SMA-KF | 14.7 | 0 | 5.2 | 0.85 | |
| SMA-KF-2 | 16.5 | 4 | 3 | 0.8 |
Xi'an Elite Electronic Industrial Co., Ltd. is a National High-tech Enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro D-sub, microwave rotary joints and other microwave components with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electronic parts industry and.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
Our products contains:
1.RF Adapter
2.SMA/SSMA RF Connector
3.SMP/SSMP RF Connector
4.TNC RF Connector
5.N Type RF Connector
6.MCX/MMCX RF Connector
7.BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)
8.RF Cable Assemblies
9.Waveguide to Coaxial Adapter
10.Glass-to-metal Hermetic Seals
11.J30J Series Connector
12.Microwave Rotary Joints
With high quality and reasonable price we warmly welcome your business cooperation!
NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
