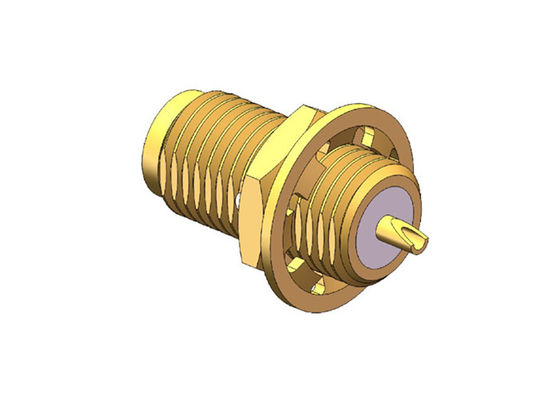

335V 18GHz Gold Plated Female SMA Bulkhead Connector

Large Image : 335V 18GHz Gold Plated Female SMA Bulkhead Connector Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT
Certification:	ROHS ISO-9001-2015
Model Number:	SMA-KYD102

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100,000 Pieces Per Month

Contact Now

Detailed Product Description

Plating:	Gold Plated/Passivation	Frequency:	DC~18GHz
Gender:	Female	Lifetime:	500 Cycles
Application:	Audio/vedio/microwave	Working Voltage:	335V R.m.s At Sea Level
Type:	SMA RF Connectors	Body Style:	Straight
Highlight:	Female SMA Bulkhead Connector , Gold Plated SMA Bulkhead Connector , 18GHz SMA RF Connector

Brass SMA Coaxial RF Connectors Gold Plated Female SMA Bulkhead Connector

SMA series is a miniature RF coaxial connector developed and produced according to Mil-C-39012. It has the characteristics of small volume, good bandwidth and excellent electrical performance. SMA is the most widely used RF coaxial connector in microwave communication and microwave measurement equipment. The high performance connector developed by our company can reach 20GHz.

335V 18GHz Gold Plated Female SMA Bulkhead Connector 0

Specification:

Electrical Characteristics
Impedance	50Ω
Frequency Range	Connect with solf cable DC~12.4GHz
	Connect with semi-rigid cable DC~18GHz
Rated Voltage	335VRMS*
Dielectrics Voltage-resistance	1000VRMS*
Insulation Resistance	≥5000MΩ
Center Resistance	Center Conductor	≤3.0mΩ
	Outer Conductor	≤2.0mΩ
VSWR	≤1.3

Features:

-Sub-miniature coaxial connectors

-Screw-on coupling

-Light weight, compact and vibration proof design

-Available in nickel or gold plating in a wide variety of orientations and PCB terminations

-Broad range with male, female and adapters variants.

-Frequency range up to 18GHz

-Intermateable with SMA, 2.9.

-Excellent return loss

Material & Mechanical Characteristics
Center Conductor	Male	Brass Gold plated
	Female	Sn-P Bronze Gold plated
Elastic Contact		Beryllium bronze Nickel plated
Shell and other Metal Parts		Brass Nickel plated
		Stainless Passivation
Crimping Sleeve		Brass Nickel plated
Tightening torque of connection		0.79－1.13N .m
Durability		500 cycles
Sealing Ring		Silicone Rubber
Insulators		PTFE

Outline Drawings of SMA RF Coax Connectors:

(mm)

335V 18GHz Gold Plated Female SMA Bulkhead Connector 1

Advantages of SMA RF Connecctors:

SMA RF connector is high quality and quick combinations by simply screwing two connectors together with no soldering or crimping required
SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc
SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz
SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations
