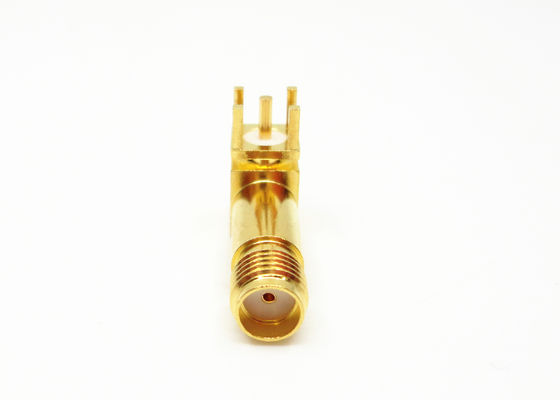

50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector

50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector
50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector 50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector 50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector 50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector 50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector

Large Image :  50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT
Certification: ROHS ISO-9001-2015
Model Number: SMA-KWHD5
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100,000 Pieces Per Month
Contact Now
Detailed Product Description
Plating: Gold Plated Frequency: DC~18GHz
Gender: Female Lifetime: 500 Cycles
Application: Audio/vedio/microwave Working Voltage: 335V R.m.s At Sea Level
Type: SMA RF Connectors Body Style: Right Angle
Highlight:

90 Degree SMA RF Connector

,

50Ohm SMA Rf Connector

,

Solder Mount Sma Pcb Connector

50Ohm Female PCB Panel Solder Mount 90-degree SMA RF Connector​

  1. SMA series is a kind of mini, high-frequency RF coaxial connector.
  2. SMA RF connector is developed and produced according to MIL-C-39012 by Xi'an Elite Electronic Industrial Co., Ltd. With characteristics of small volume,good bandwidth,superior electrical characteristics.
  3. SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.
  4. The high performance connector developed by our company can reach to 20GHz.

 50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector 0

Specification of SMA RF Connectors:


Electrical Characteristics
Impedance 50Ω
Frequency Range Connect with solf cable DC~12.4GHz
Connect with semi-rigid cable DC~18GHz
Rated Voltage 335VRMS*
Dielectrics Voltage-resistance 1000VRMS*
Insulation Resistance ≥5000MΩ
Center Resistance Center Conductor ≤3.0mΩ
Outer Conductor ≤2.0mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Brass Gold plated
Female Sn-P Bronze Gold plated
Elastic Contact Beryllium bronze Nickel plated
Shell and other Metal Parts Brass Nickel plated
Stainless  Passivation
Crimping Sleeve Brass Nickel plated
Tightening torque of connection 0.79－1.13N .m
Durability 500 cycles
Sealing Ring Silicone Rubber
Insulators PTFE


Features of SMA RF Connectors:

  • Sub-miniature coaxial connectors
  • Screw-on coupling
  • Light weight, compact and vibration proof design
  • Available in nickel or gold plating , in a wide variety of orientations and PCB terminations
  • Broad range with male, female and adapters variants.
  • Frequency range up to 18GHz
  • Intermateable with SMA2.9.
  • Excellent return loss

Detailed Images of SMA RF Connectors:



50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector 1

 50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector 2

Application:
Network
Radar
Automotive
Satcom
Computer/LANs
Broadband
Instrumentation
Phased array antennas
Telecommunications
Aerospace



Interface Dimentions:(mm)

50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector 3

Related Product:

1.SMA Female Right Angle PCB Panel Solder Mount RF Coaxial Connector

50Ohm PCB Panel Solder Mount 90 Degree SMA RF Connector 4

Model No. L L1 Note
SMA-KWHD 13.5 3.9
SMA-KWHD9 11.5 1.9
SMA-KWHD11 15.6 6



NOTE:

We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
