18GHz Gold Plated Jack Hermetically Sealed SMA RF Connector

I'm Online Chat Now
Certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
Product was exactly as expected and of high quality. Service was excellent. Will definitely order from again.

—— Gregory,USA

Understood my requirements and sought the right parts.

—— Ian, New Zealand

It has been a great pleasure dealing with you and thank you for your help and suggestion. Hope that there will be more copperation in the near future.

—— Terence, Singapore

The SMP connectors are high quality, the leak rate can reach 1*10^-9 mbar*l/s. A great deal with such an economic price.

—— Jonh,United States

Professional Seller

—— Abdu,Saudi Arabia

18GHz Gold Plated Jack Hermetically Sealed SMA RF Connector

18GHz Gold Plated Jack Hermetically Sealed SMA RF Connector
18GHz Gold Plated Jack Hermetically Sealed SMA RF Connector

Large Image :  18GHz Gold Plated Jack Hermetically Sealed SMA RF Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: ROHS ISO-9001-2015
Model Number: SMA(M)-KFD1
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1,000,000 Pieces Per Month
Detailed Product Description
Item: SMA RF Coaxial Conector Gender: Female
Impedance: 50Ω Frequency: DC~18GHz
Lifetime: 500 Cycles Application: RF
Other: 4-hole Flange Color: Gold Plated
High Light:

Hermetically Sealed SMA RF Connector

,

18GHz SMA RF Connector

,

50Ω Gold Plated Jack Connector

 Hermetically Sealed SMA RF Connector Gold Plated Jack Connector



SMA series is a kinds of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012. With characteristics of small volume,good bandwidth,superior electrical characteristics.



SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.



Electronic and Material Characterials:



Electronic and Material Characterials
Impedance 50Ω
Frequency Range DC~18GHz
Rated Voltage 335 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 1000 VRMS (Maximum sea-level)
VSWR ≤1.3
Insulation Resistance ≥5000MΩ
Center conductor Male Brass gold plated
Female Beryllium copper gold plated
Shell and other metal parts Brass gold plated
Stainless steel passivated
Cable sheath Brass nickle plated
Insulator PTFE
Seal ring Silicon rubber
Mating torque 0.79 -1.13 N.m

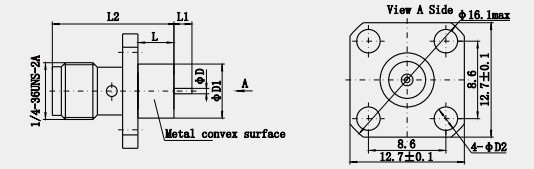

Outline Drawing:(mm)

18GHz Gold Plated Jack Hermetically Sealed SMA RF Connector 0



Application:
*Aerospace
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications

*Board-to-board interconnect



Product Category:
1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. Microwave Rotary Joints
8. RF Loads, Terminations (TNC,SMA, SSMA, SMP, SSMP, N, K2.92mm)
9. ODM Products



Similar Products:

1.SMA Female 4 Holes Flange Mount Right Angle RF Coaxial Connectors

18GHz Gold Plated Jack Hermetically Sealed SMA RF Connector 1

Model No. D Note
SMA-KWFD2 0.2*0.5
SMA-KWFD109 0.5*0.2



2.Gold Plated Brass 2 Hole Flange Mount Straight RF Coaxial Connector Jack

18GHz Gold Plated Jack Hermetically Sealed SMA RF Connector 218GHz Gold Plated Jack Hermetically Sealed SMA RF Connector 318GHz Gold Plated Jack Hermetically Sealed SMA RF Connector 4

Model No. L L1 D D1 D2 Note
SMA-KFD193 4 1.5 0.5*0.2 4 2.2 Terminal flat side is parralled to the long side of the flange
SMA-KFD524 5 2.5 0.5*0.2 4 2.6
SMA-KFD773 4 4 φ1.3*0.2 5.2 2.2
SMA-KFD1207 3.5 5 0.5*0.2 4.1 2.6



3. Hermetically sealed Female SMA RF Conectors

18GHz Gold Plated Jack Hermetically Sealed SMA RF Connector 5

Model No. Note
SMA(M)-KFD Hermetic



4. Female Bulkheaf Right angle Solder Mount SMA Connector

18GHz Gold Plated Jack Hermetically Sealed SMA RF Connector 6

Model No. L Note
SMA-KYWHD 14.8
SMA-KYWHD1 13.5



5.50Ω Straight Female Edge PCB Mount SMA RF Connector

18GHz Gold Plated Jack Hermetically Sealed SMA RF Connector 7

Model No. L L1 L2 D D1 Note
SMA-KHD 13.5 4 4 1.3 1.4
SMA-KHD109 12 2.5 2.5 1.3 1.4
SMA-KHD112 12 2.5 1.6 1.3 1.4
SMA-KHD117 13.5 4 4 0.9 1
SMA-KHD150 14.5 5 5 1.3 1.4
SMA-KHD158 15.5 6 6 0.9 1

NOTE:

We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
