| Type: | RF Adaptor | Product Name: | BNC Female To SMA Female Adapter |
|---|---|---|---|
| Impedance: | 50Ω | Gender: | Female To Female |
| Material: | Brass | Plating: | Nickel Plated |
| Insulator: | PTFE | Durability: | 500 Cycles |
| Certificate: | ROHS ISO-9001-2015 | Application: | RF |
| Highlight: | 50Ohm Rf Connector Adapter,BNC To SMA RF Adapter,PTFE Insulated Rf Connector Adapter |
||

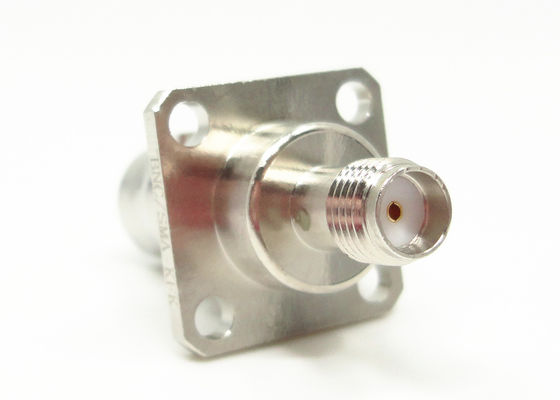

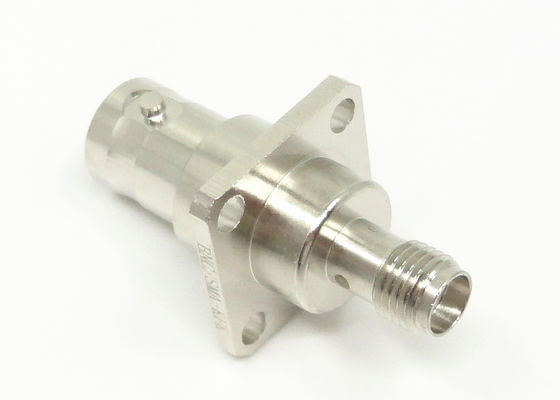

4-hole Flange Mount BNC Female to SMA Female RF Connector Adapter 50Ohm
SMA connectors are small, high frequency RF coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20GHz.
BNC connectors are RF coaxial connectors that feature in high reliability, quick connect and quick disconnect compared with other types of RF coaxial connectors. The most common impedances of BNC connectors are 50Ohm and 75Ohm. The frequency range of BNC connectors is up to 4GHz, which makes them popular interconnection components for basestations, Internet systems, instrumentation and communication systems etc.
As manufacturer, we can customize BNC SMA connectors and adapters as per your different requirement. Orientations in straight and right angle, with 2-hole or 4-hole flange or threaded bulkhead, hermetic and waterproof types are all available upon request.
Outline Drawing(mm)
Specifiacation:
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 4GHz |
| VSWR | ≤1.3 |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |
Product Category:
1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. Microwave Rotary Joints
8. ODM Products
We also can provide below BNC/SMA adapters:
|
Part Number
|
Description
|
|
BNC/SMA-JK
|
BNC Male to SMA Female Adapter
|
|
BNC/SMA-KK
|
BNC Female to SMA Female Adapter
|
|
BNC/SMA-JJ
|
BNC Male to SMA Male Adapter
|
| BNC/SMA-KJ | BNC Male to SMA Female Adapter |
NOTE:
We have over 10,000 types of RF Adapter, if the connector you are using is not found, please contact us with your details.
