| Product Name: | SMA RF Conector | Plating: | Gold Plated |
|---|---|---|---|
| Gender: | Female | Impedance: | 50Ω |
| Frequency: | DC~18GHz | Durability: | 500 Cycles |
| Model: | SMA-KFD76E | ||
| Highlight: | sma antenna connector,sma bulkhead connector |
||
The SMA RF coaxial connector adapter is a small, high frequency coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20GHz.
Specifiacation:
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 18GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.3 |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |

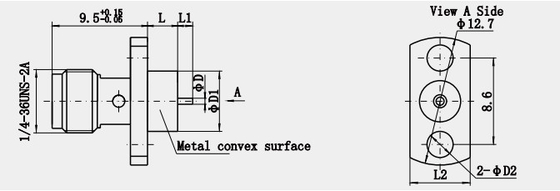

Outline Drawing:(mm)
| Model No. | L | L1 | L2 | D | D1 | D2 | Note |
| SMA-KFD76E | 3 | 1.5 | 6.7 | 0.6 | 6 | 2.2 | |
| SMA-KFD183 | 4 | 1.5 | 5.7 | 0.5 | 4 | 2.2 | |
| SMA-KFD196 | 4 | 0.5 | 5.7 | 0.8 | 4 | 2.2 | |
| SMA-KFD199 | 4 | 1.8 | 5.6 | 0.8 | 4.7 | 2.6 | |
| SMA-KFD238 | 4 | 2 | 5.6 | 0.8 | 4.1 | 2.6 | |
| SMA-KFD321 | 4 | 2.5 | 5.7 | 0.5 | 4 | 2.6 | |
| SMA-KFD456 | 4 | 1.7 | 5.7 | 0.8 | 4.8 | 2.6 | |
| SMA-KFD460 | 4 | 1.5 | 5.7 | 0.8 | 4 | 2.2 | |
| SMA-KFD556 | 4 | 2 | 5.6 | 0.6 | 4.1 | 2.6 | |
| SMA-KFD586 | 3 | 1.5 | 5.7 | 0.8 | 4 | 2.6 | |
| SMA-KFD623 | 3.5 | 3 | 5.7 | 1.3 | 5.2 | 2.4 | |
| SMA-KFD810 | 5 | 2 | 5.7 | 0.5 | 4 | 2.6 | |
| SMA-KFD814 | 3 | 2 | 5.7 | 0.5 | 4 | 2.6 | |
| SMA-KFD1151G | 4 | 3.4 | 5.7 | 0.7 | 3.6 | 1.8 | Stainless Steel housing |
| SMA-KFD1191G | 2 | 2.5 | 5.7 | 0.5 | 4 | 2.6 | Stainless Steel housing |
| SMA-KFD1322G | 3.5 | 1.5 | 5.7 | 0.5 | 4 | 2.2 | Stainless Steel housing |
| SMA-KFD5433 | 7.5 | 2.5 | 5.7 | 0.5 | 4 | 2.6 |
Similar Products:
1.Gold Plated Brass 2 Holes Flange Mount Straight RF Coaxial Connector Jack
| Model No. | L | L1 | D | D1 | D2 | Note |
| SMA-KFD193 | 4 | 1.5 | 0.5*0.2 | 4 | 2.2 | Terminal flat side is parralled to the long side of the flange |
| SMA-KFD524 | 5 | 2.5 | 0.5*0.2 | 4 | 2.6 | |
| SMA-KFD773 | 4 | 4 | φ1.3*0.2 | 5.2 | 2.2 | |
| SMA-KFD1207 | 3.5 | 5 | 0.5*0.2 | 4.1 | 2.6 |
2.Hermetically sealed Female SMA RF Conectors
| Model No. | Note |
| SMA(M)-KFD | Hermetic seal SMA female 4-hole flange rf connector |
3.SMA Female 4 Holes Flange Mount Right Angle RF Coaxial Connectors
| Model No. | D | Note |
| SMA-KWFD2 | 0.2*0.5 | SMA female right angle 4-hole flange rf connector |
| SMA-KWFD109 | 0.5*0.2 |
Application:
* Broadband
* Instrumentation
* Phased array antennas
* Telecommunications
* Board-to-board interconnect
* Base Station
* Mobile communication
* Outdoor facilities
* Radar,microwave
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
