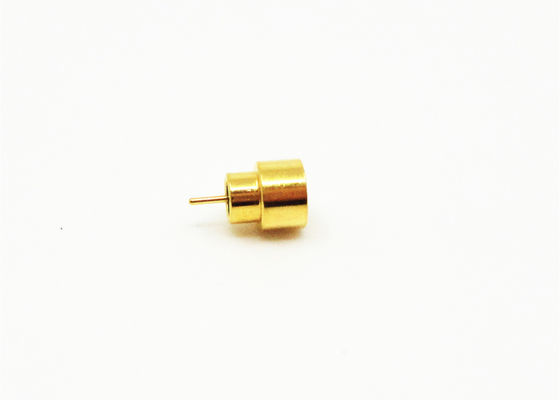

| Product Name: | SSMP Connector, SMPM, Mini SMP | Gender: | Male |
|---|---|---|---|
| Material: | Brass | Plating: | Gold Plated |
| Impedance: | 50Ω | Frequency Range: | DC~50GHz |
| Model: | SSMP(M)-JHD18 | Other Names: | Mini SMP, SMPM |
| Highlight: | smpm coaxial connector,small coax connectors |
||
SMPM is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting,and the plug has two interface form with full detent and unthreaded hole. The SMPM for the install situation with the requirement of high reliability modular intensive.Typical applications include third generation telecommunication systems
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
Material & Mechanical Characteristics:
Center Conductor:
Male: Sn-P Bronze/Kovar, Gold plated
Female: Beryllium bronze, Gold plated
Elastic Contact:Beryllium bronze Gold plated
Body and other Metal Parts: Brass/Kovar with Gold plated
Insulators: Glass sintering/PTFE/PEI
Product Drawing:
Features:
1, SMPM (SSMP) is a sub-miniature, push-on style micro-interfaces connector.
2, The size is 35% smaller than the SMP design.
3, SMPM series includes PC-mount, straight and right-angled, .047 cabled connectors, and sealable flange-mounts.
4, All male connectors are offered as full-detent or smooth bore designs for your preference of separation forces.
Gold offers the following main advantages:
-- Excellent wettability/solderability
-- Excellent protection against corrosion
-- Low contact resistance
-- Good wear resistance
Application:
* Aerospace
* Board-to-board interconnect
* Broadband
* Antennas
* Military
* Instrumentation
