Gold Plated SMPM RF Connector Male To Male Rf Coaxial Connector 50Ω Impedance

Gold Plated SMPM RF Connector Male To Male Rf Coaxial Connector 50Ω Impedance
Gold Plated SMPM RF Connector Male To Male Rf Coaxial Connector 50Ω Impedance Gold Plated SMPM RF Connector Male To Male Rf Coaxial Connector 50Ω Impedance Gold Plated SMPM RF Connector Male To Male Rf Coaxial Connector 50Ω Impedance Gold Plated SMPM RF Connector Male To Male Rf Coaxial Connector 50Ω Impedance

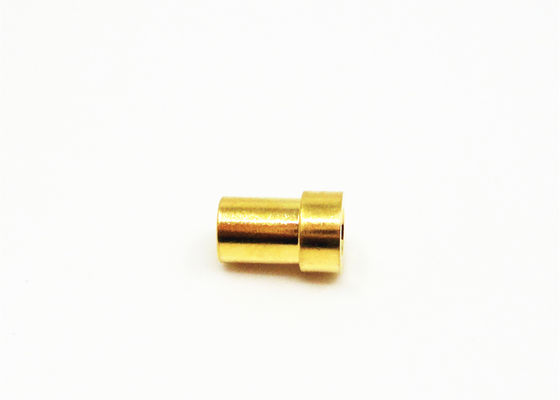

Large Image :  Gold Plated SMPM RF Connector Male To Male Rf Coaxial Connector 50Ω Impedance Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: SSMP(M)-JJ2
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: within 3 weeks
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1,000,000pcs per month
Detailed Product Description
Product Name: SSMP Connector, SMPM, Mini SMP Gender: Male
Material: Brass Plating: Gold Plated
Impedance: 50Ω Frequency Range: DC~50GHz
Model: SSMP(M)-JJ2 Other Names: Mini SMP, SMPM
Highlight:

smpm coaxial connector

,

small coax connectors

Light Weight SSMP Straight Male Plug RF Connector SMPM for PCB



SMPM is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting,and the plug has two interface form with full detent and unthreaded hole. The SMPM for the install situation with the requirement of high reliability modular intensive.Typical applications include third generation telecommunication systems



Gold Plated SMPM RF Connector Male To Male Rf Coaxial Connector 50Ω Impedance 0     Gold Plated SMPM RF Connector Male To Male Rf Coaxial Connector 50Ω Impedance 1




Specification:

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~50GHz
Rated Voltage 170VRMS*
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor Normal≤3.5mΩ, Sealing≤5mΩ
Center conductor Normal≤8mΩ, Sealing≤30mΩ
  DC~18GHz 18~26.5GHz 26.5~40GHz 40~50GHz
VSWR ≤1.25 ≤1.3 ≤1.4 ≤1.5



Material & Mechanical Characteristics:



Center Conductor:

Male: Sn-P Bronze/Kovar, Gold plated

Female: Beryllium bronze, Gold plated


Elastic Contact:Beryllium bronze Gold plated

Body and other Metal Parts: Brass/Kovar Gold plated





Product Drawing:



Gold Plated SMPM RF Connector Male To Male Rf Coaxial Connector 50Ω Impedance 2





Features:



- Higher frequency range to 50GHz



- SMPM (SSMP) is a sub-miniature, push-on style micro-interfaces connectors can be widely used in telecom.



- SMPM series includes PC-mount, straight and right-angled, .047 cabled connectors, and sealable flange-mounts.



- All male connectors are offered as full-detent or smooth bore designs for your preference of separation forces.





Gold offers the following main advantages:



-- Excellent wettability/solderability



-- Excellent protection against corrosion



-- Low contact resistance



-- Good wear resistance





Application:



*Aerospace



*Board-to-board interconnect



*Broadband



*Instrumentation



*Phased array antennas



*Telecommunications





Certificate:

Gold Plated SMPM RF Connector Male To Male Rf Coaxial Connector 50Ω Impedance 3







Factory& Production Line:

Gold Plated SMPM RF Connector Male To Male Rf Coaxial Connector 50Ω Impedance 4



NOTE:

We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
